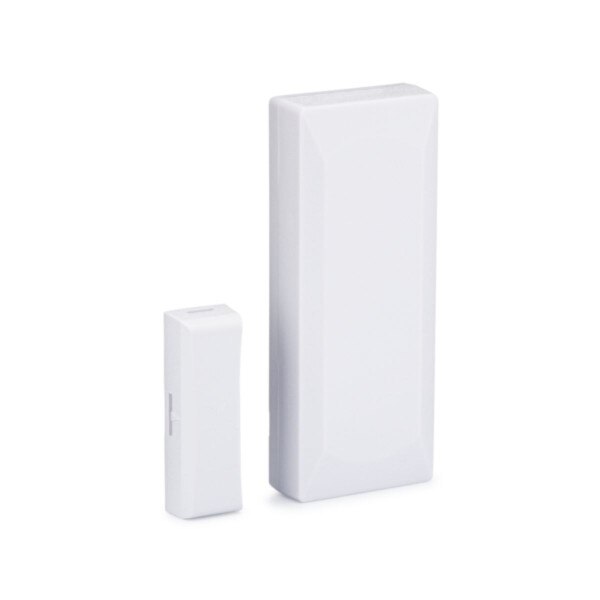

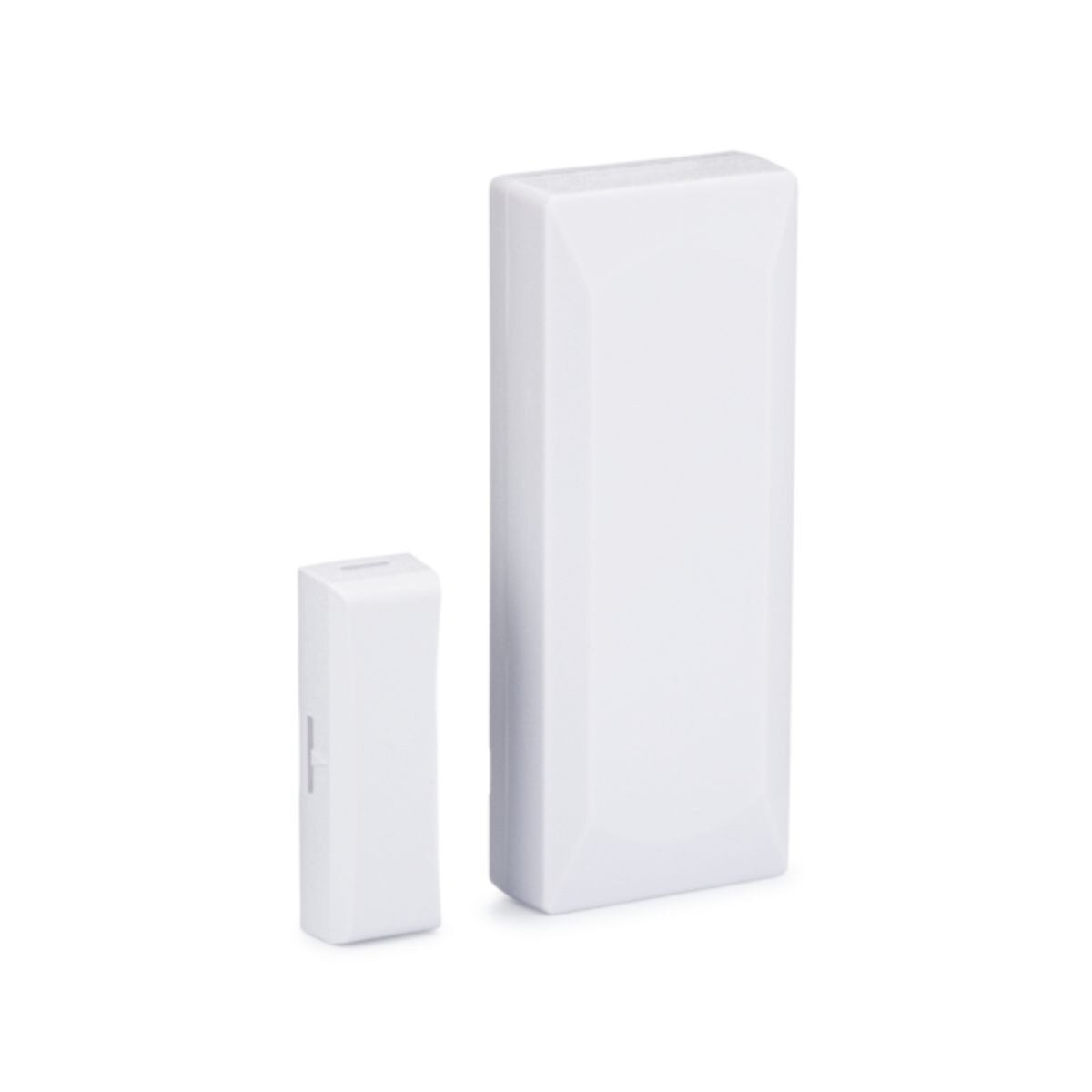

Thin Contact Sensor
The Thin Door/Window Contact is designed for use on doors, windows, and other objects that open and close. It communicates with the control panel using the 345 MHz frequency. When the magnet (which is mounted near the sensor) moves away from or closer to the door contact’s sensor, signals are transmitted to the control panel. The door contact also has an external input that accepts connections from normally-closed (NC) dry contact devices. For added protection, it is also equipped with a cover tamper.
Specifications
- Sensor Type: Surface-Mounted Contact
- Compatible Systems: 2GIG Panels, Honeywell Lyric (MR3 or Higher), Qolsys IQ Panel 2 Plus 345 MHz, Resideo PROA7PLUS (Requires PROTAKEOVER)
- Communication: Non-Encrypted Wireless
- Sensor Dimensions: 2.59"L x 1.03"W x 0.49"D
- Magnet Dimensions: 1.3"L x 0.435"W x 0.312"D
- Maximum Magnet Spacing Gap: 0.4 Inches
- Wireless Range: 350 Feet Nominal
- Mounting Methods: Screws or Adhesive Foam Tape
- Hardwired Input: Yes (NC Only, harness included)
- Battery Type: Two (2) CR2032 Coin Batteries
- Expected Battery Life: Five (5) Years
Features
- For narrow applications, sensor is only 3/4″ wide
- Fully supervised
- Rare earth magnet
- Supports internal and external contacts
- Can be used for 2 zones of protection
- Lithium battery
