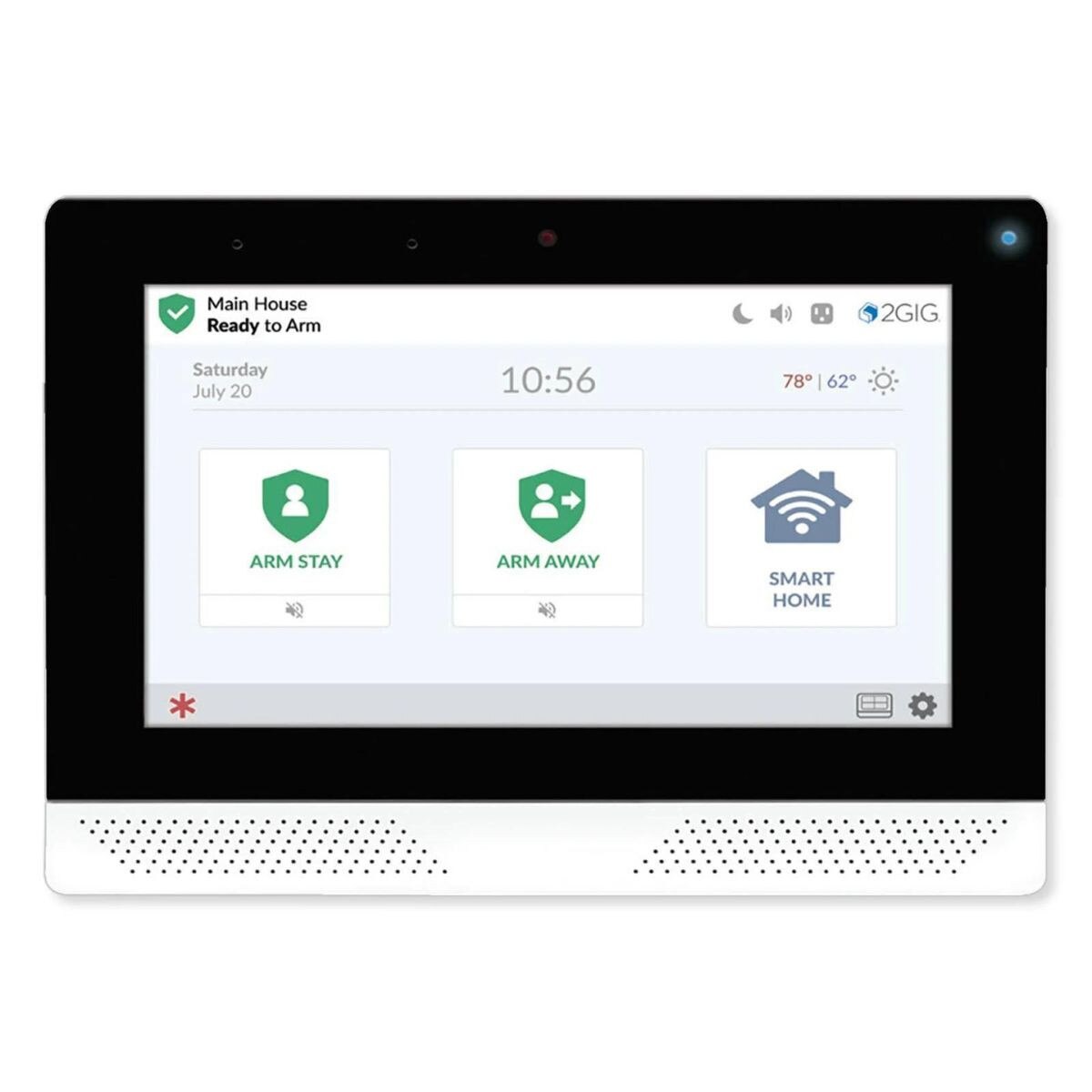

Edge Verizon Panel
The 2GIG EDGE™ panel sets a new benchmark in form and function with its sleek design that is thinner and more powerful than ever. Our on the edge processing technology is the difference that enables touchless disarm and the industry-first home security system with built-in face recognition and analytics within the panel itself – so private data stays private for greater peace of mind.
Introducing 2GIG’s latest software update – Edge 1.3, packed with innovative features to enhance installation experience. With support for E+ Extended Range Sensors, wireless sensor enrollment is easier and quicker by streamlining programming steps with pre-populated defaults. With the panel display of RSSI values, dealers can keep track of sensor signal strength enabling efficient troubleshooting, thus reducing truck rolls. For added customization and catering to a wider range of devices, the update includes the option for normally open programming for select sensors. Dealers can save time and effort during panel servicing with the Z-Wave backup and restore functionality through alarm.com. Elevate your security system offerings with these cutting-edge features to enable efficient and reliable security installation.
Features You Love:
- Industry-first face recognition disarm with a fast and powerful processor delivering amazing rich colors on a brighter and larger screen.
- Sleek, thin design is easy-to-use with updated and intuitive UI providing one button access to smart home functions and home automations.
- Superb audio quality with twice the speakers, double the microphones. Added noise and echo cancellation with two-way communication.
- Integrated Z-Wave Plus 700 V2 (700 series) with the ability to create and execute scenes and schedules.
- Alarm.com compatible
- Pair the 2GIG EDGE with the 2GIG EDGE Remote Keypad as additional panels in the home. The 2GIG EDGE Remote Keypad provides many of the easy-to-use functions with a consistent user interface and wireless system. And with the on-board camera, it streams to the 2GIG EDGE panel and other 2GIG EDGE Remote Keypads.
Panel Features
Features:
- Face recognition disarm
- Bluetooth disarm
- Glassbreak detection with advanced audio analytics
- Video live view on the panel
- Alarm.com cameras on the panel
- Doorbell on the panel with 2-way audio and door unlock
- ONVIF camera support
- Photo capture while viewing on a 7" LCD - RGB: 16.7 million colors
- Data privacy
- 2GIG secure 6-digit personal codes
Security:
- One-touch arming
- eSeries encrypted sensors
- Emergency (fire, medical, police)
- 100 users
- 100 wireless zones
- 2 wired zones
- Wired bell output
- 32 keyfobs
- 8 keypads
- 2 open collector outputs
- Image sensor 3
Audio:
- Best in class 2-way voice
- Dual microphones (digital)
- Noise and echo cancellation
- Front firing speakers
- Siren/piezo
- Annunciations and chimes
Automation:
- Integrated Z-Wave Plus V2 (700-Series)
- Z-Wave S2
- Create and execute scenes and schedules
Voice Controls:
- Google Assistant
- Amazon Echo
- Siri Shortcuts
Communication:
- 4G LTE (Verizon Network)
- 3G fall-back
- WiFi 2.4 GHz (802.11 b/g/n, WPA-TKIP/WPA2-AES)
- WiFi access point
Operating Specifications:
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Max Humidity: 90%
- Power Requirements: 100-240VAC 50/60Hz 1.7A, 14VDC adapter
- Battery: Lithium-polymer backup battery (24 hrs.)
- Dimensions (L x W x D): 7.5 x 5.625 x 1.0 in (19.05 x 14.29 x 2.54 cm)
- Weight: 1.39 lbs (0.63 kg)
Certifications:
- FCC: Part 15, Part 68
- ISED, RSS210/RSS247
- UL 985, UL 1023, UL 2017, ULC-S545, ULC S304 (for Canada)
- SIA CP-01
- CSFM BML Listed
- PROP-65, ROHS
Firmware Updates:
- Over-the-air
- USB
2GIG® Security Dealer Toolkit The 2GIG Security Dealer Toolkit app demonstrates the interface of the 2GIG EDGE™ panel with security and automation devices. This sales tool will also link any sales documentation required and make it easier for dealers and integrators to showcase Edge™ panel’s capabilities. Note: The app simulates these interactions and does not provide any connectivity to installed panels or security devices.
Industry-First Face Recognition Disarm
Touchless convenience Integrated face recognition and Bluetooth technologies significantly streamline operation – no putting down grocery bags to disarm the alarm system.
Easy Installation and Programming
The 2GIG EDGE panel was designed with you in mind. Quick easy access to the features you need to enable with the flexibility to support any application you may encounter on the job site.
Data Privacy
Increased Data Privacy and Extra Security. Packed with built-in features homeowners demand -- on board camera, 2-way audio, cell radio, glass break sensor. Homeowners can feel secure in knowing processing analytics on the panel vs the cloud will better protect their information.
Smart Home Capabilities
Ability to customize with controls, rules, scenes, and notifications. Z-Wave 700 series supports large ecosystem of security equipment and smart devices. Voice control through home automation tools like Google Assistant, Amazon Echo and Siri Shortcuts.
Live View Video
The 2GIG EDGE panel will work with your indoor camera, outdoor camera, and doorbell camera with up to 8 different camera feeds viewable directly from the panel. View 4 camera feeds at a time.
Advanced Technology
The 2GIG EDGE is the most innovative, award-winning panel in the market packed with cutting edge design details including a blazing fast quad-core processor, amazing rich colors, brighter screen that is double in size and superb audio with front-facing, dual speakers and dual microphones.
