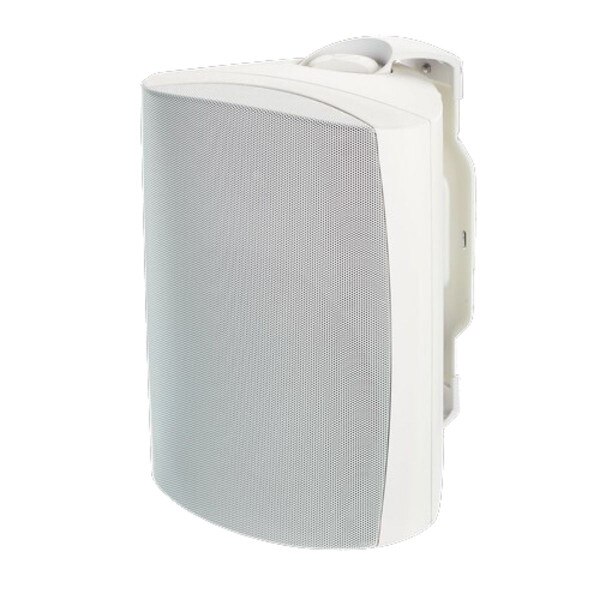

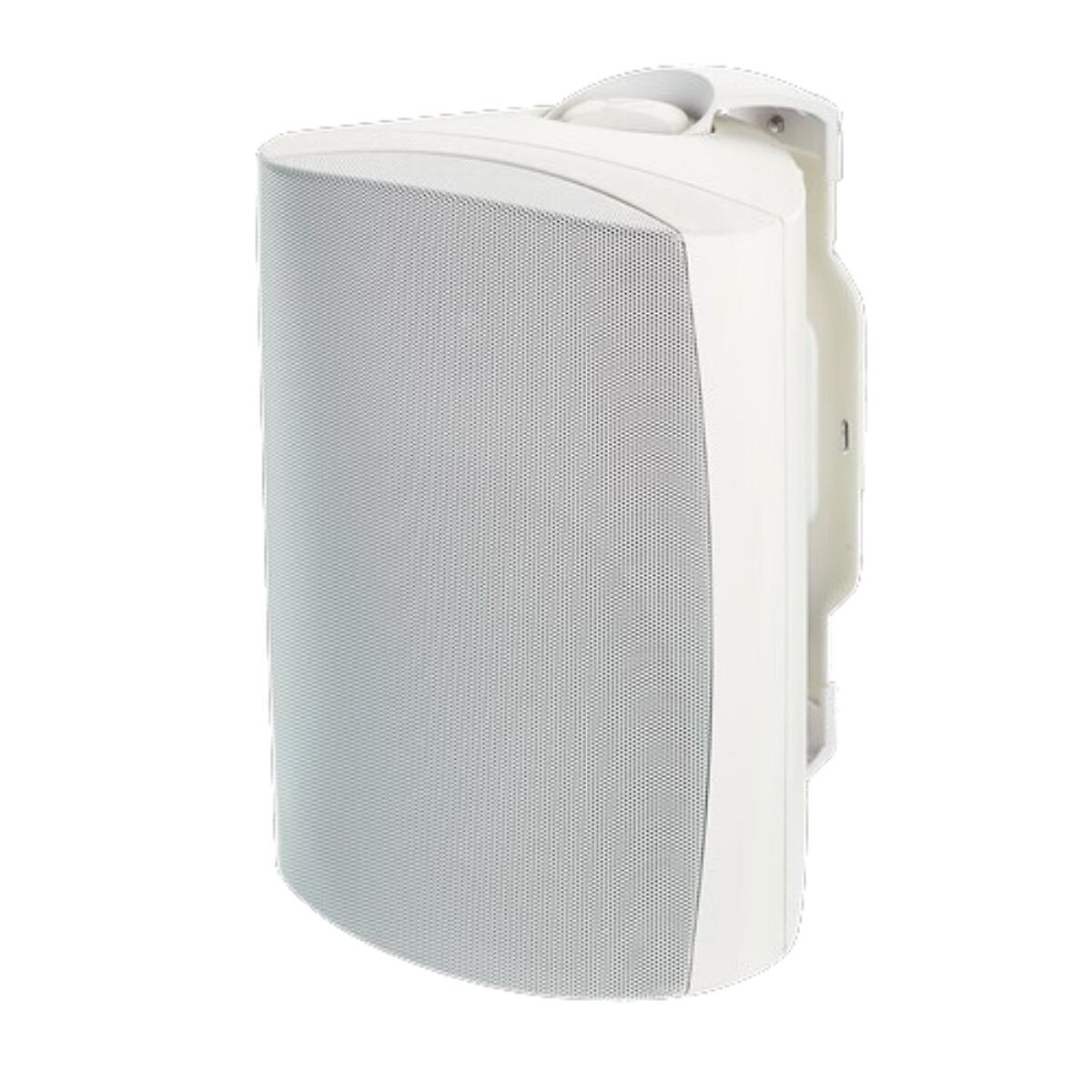

ML-75AW (White)
Frequency Response | 75–20,000 Hz ±2dB |
Aiming | Swivels on U-Bracket |
Recommended Amplifier Power | 20—160 watts per channel |
Sensitivity | 93 dB |
Impedance | 8 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. Compatible with 4, 6, or 8 Ohm rated amplifiers. |
Crossover Frequency | 2300 Hz |

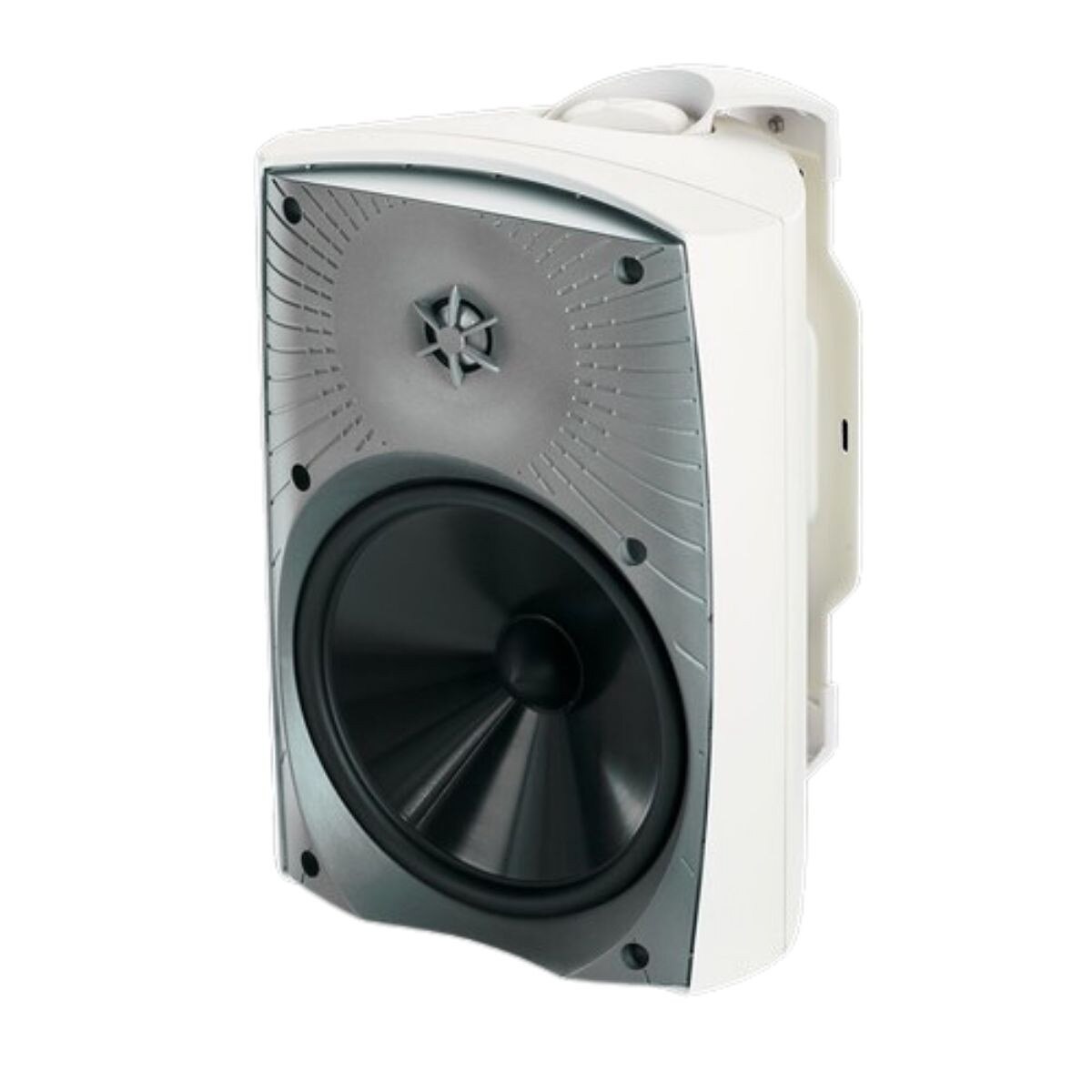

High Frequency Transducer | 1" (2.5cm) titanium dome |
Low Frequency Transducer | 7.5” (19cm) mineral- filled polypropylene cone |

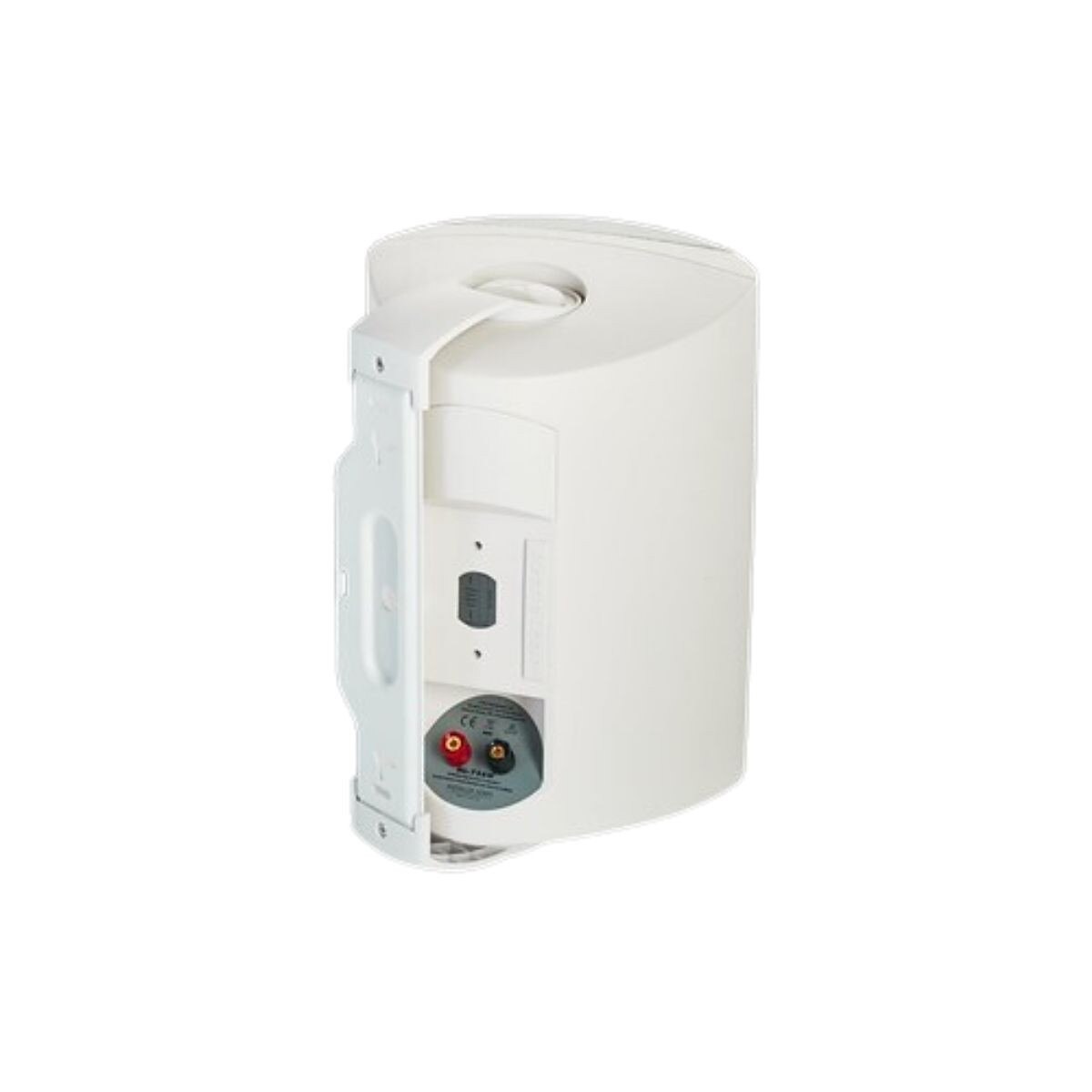

Inputs | 5-way binding posts accommodate wire up to 5AWG |
Weight | 10.6 lbs. (4.8 kg) |
Dimensions | 12.5" x 8.81" x 9.13 " |
Affordable High-Performance Solutions
The Installer Series™ by MartinLogan is a line of affordable high-performance products, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. Manufactured to the highest standards of quality, these products are available through authorized specialty custom installation specialists and carry the full MartinLogan warranty.
