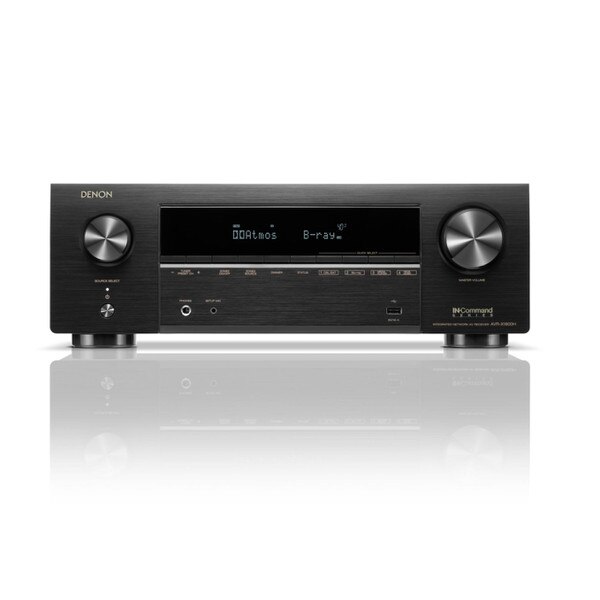

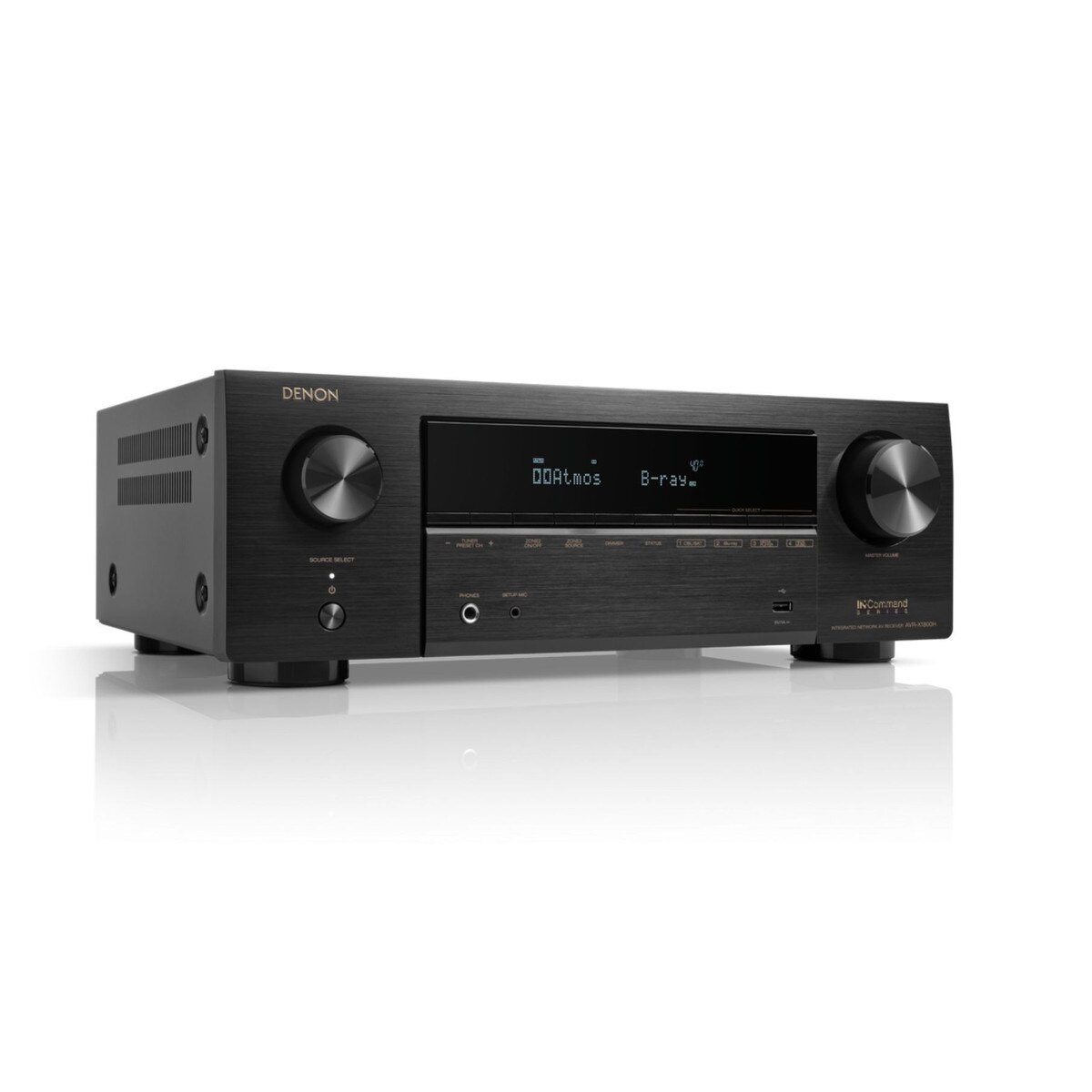

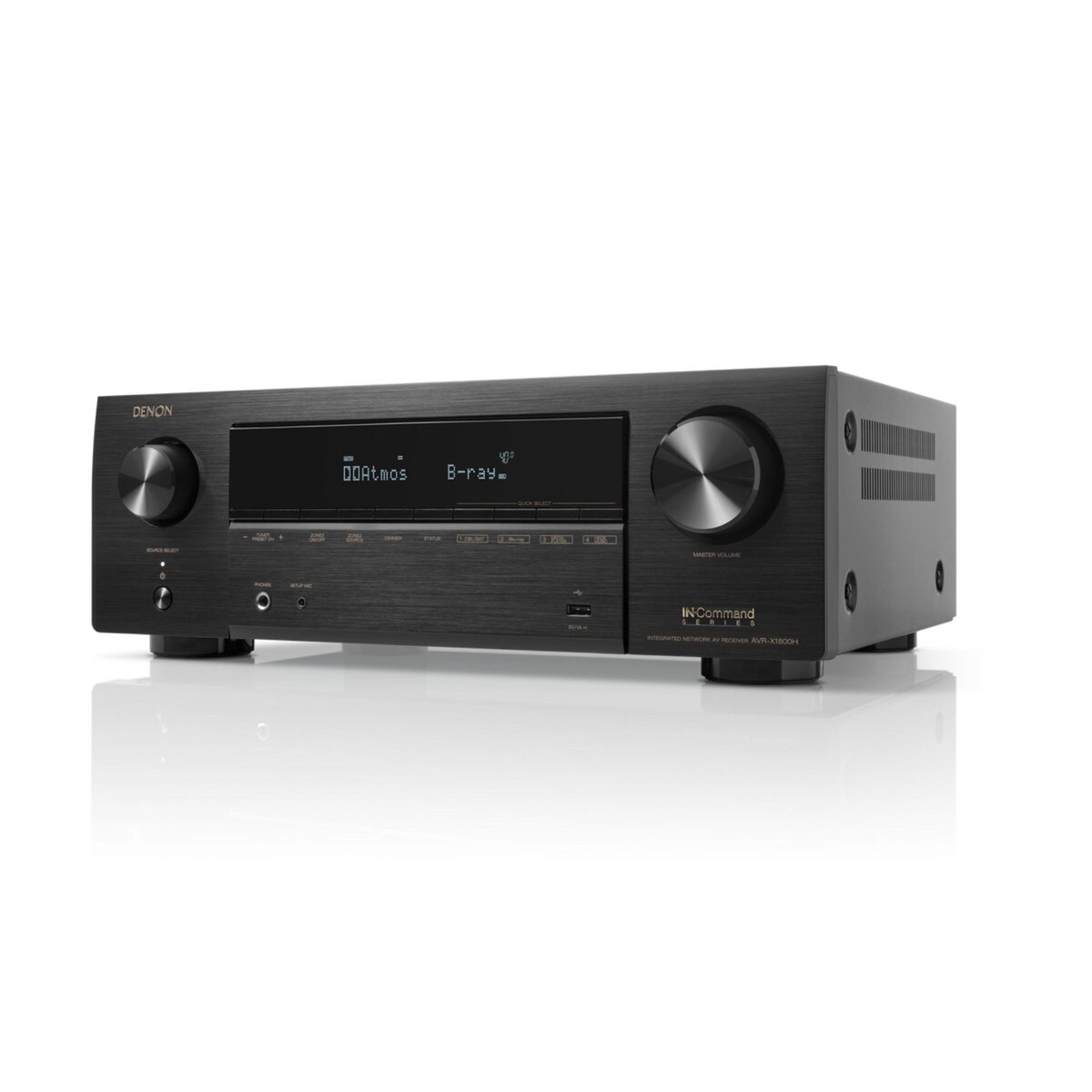

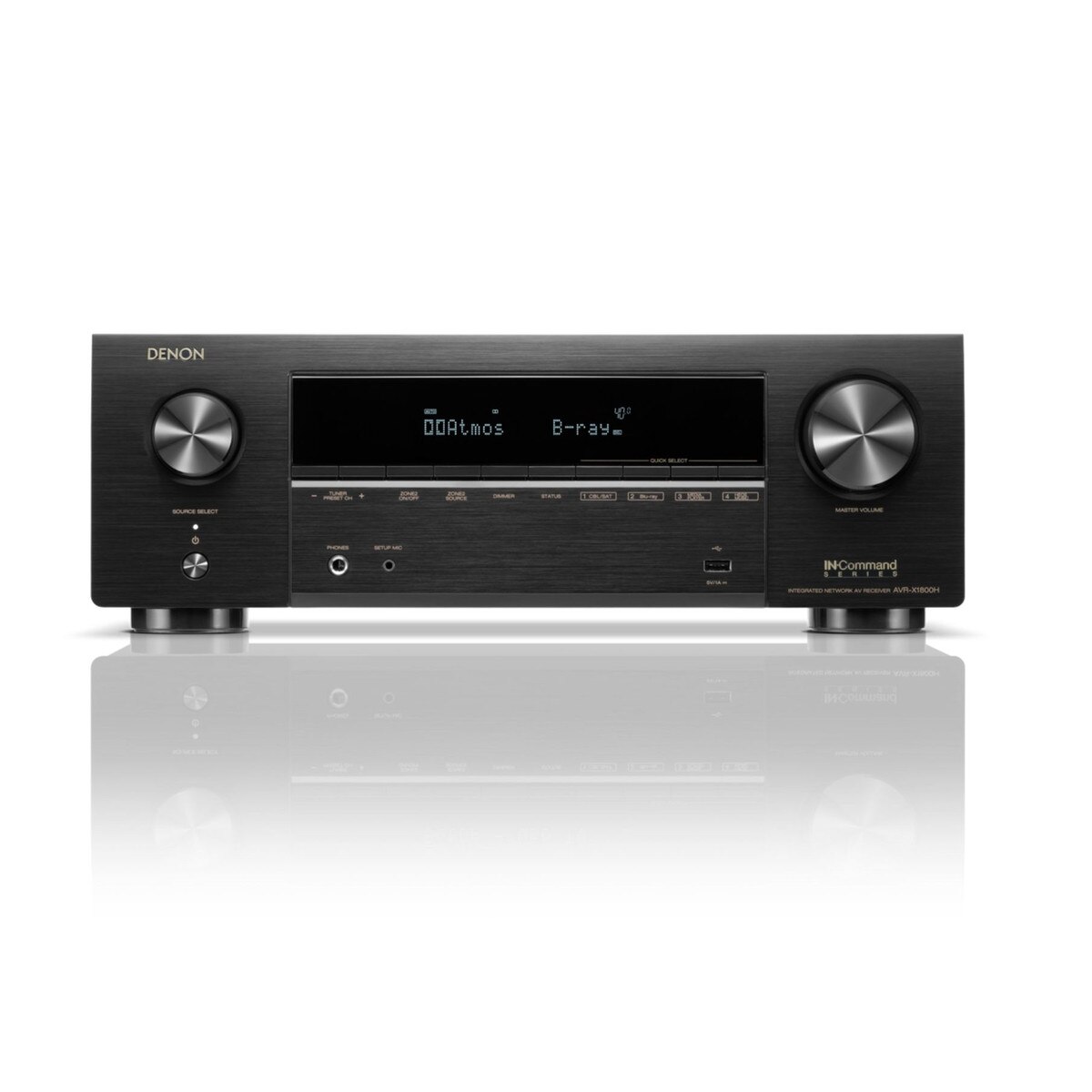

AVR-X1800H
The Denon AVR-X1800H is a 7.2-channel 8K Ultra HD and 3D audio A/V receiver that easily fills small to medium-size rooms with brilliant audio from a 7.2 or 5.2.2 set up with Dolby Atmos and DTS:X. Powered by HEOS®, you can wirelessly stream music and share with every HEOS-enabled speaker around your home.
Number of Power Amps 7
Power Output (8 ohm, 20 Hz–20 Khz, 0.08% 2ch drive) 80 watts per channel
Power Output (6 ohm, 1 kHz, 0.7% 2ch drive) 120 watts per channel
Power Output (6 ohm, 1 kHz, 10%->1% 1ch drive) 145 watts per channel
System Remote Control RC-1257
Power Consumption 430W -> 440W
Power Consumption (No Sound, ECO on/off) 29W/39W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Maximum Dimensions (W×D×H) 434 x 151 x 339
Antenna: Horizontal(mm) 434 x 215 x 339
Antenna: Vertical(mm)
Carton Dimensions (Packaging) (WxDxH) 523 x 435 x 232mm
Weight in kg 8.6 kg
Multichannel Surround
DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / No
DTS Neo:6 / DTS Neural:X No / Yes
DTS Virtual:X Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music Yes / Yes / Yes / Yes
Dolby ProLogic Il / Dolby Surround No / Yes
Multichannel Stereo Yes
Max. number of processing (preamp) channels 7.1
Sound Enhancements
Discrete Power Amplifier Yes
Audyssey MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Compressed Audio Restorer Yes
Network
Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Bluetooth Re-Transmit for Bluetooth Headphones Yes (with volume control)
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio Streaming Yes (AirPlay2)
Internet Radio Yes (TuneIn)
Spotify Yes (connect)
Pandora Yes
SiriusXM Yes
Other Streaming Services Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested Yes
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
HDMI Inputs: Back/Front 6 (3x 8K) / No
HDMI Outputs: Main/Zone 1 / No
HDMI max Resolution (8k / 4k) 8k/60 - 4k/120
HDMI to HDMI Scaling up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR /HLG Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR Yes / No / Yes / Yes
HDMI Pass-Though in Standby Mode Yes
Multiroom / CI
HEOS Multiroom integrated Yes
TV Sound grouping Yes
Multiroom zones 2
Main room multichannel audio - Zone stereo downmix Yes
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-Out Yes / No
Webbrowser Setup Yes
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
Others
Compatible with Remote App for smart phones Denon AVR Remote
Auto Speaker Setup by Microphone Audyssey MultEQ XT
Front Display 1-Line FLD
GUI Languages 9
Voice Control - Works with Amazon Alexa Yes
Voice Control - Google Assistant / Apple Siri Yes
Graphic User Interface - GUI High Definition 1080p
Setup Assistant Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by Network / USB Yes / Yes
Variable Crossover Yes
Optimized Bass Redirection Yes
HDMI Diagnostic Mode Yes
ECO Mode Yes
Auto Power off Yes
Sleep Timer Yes

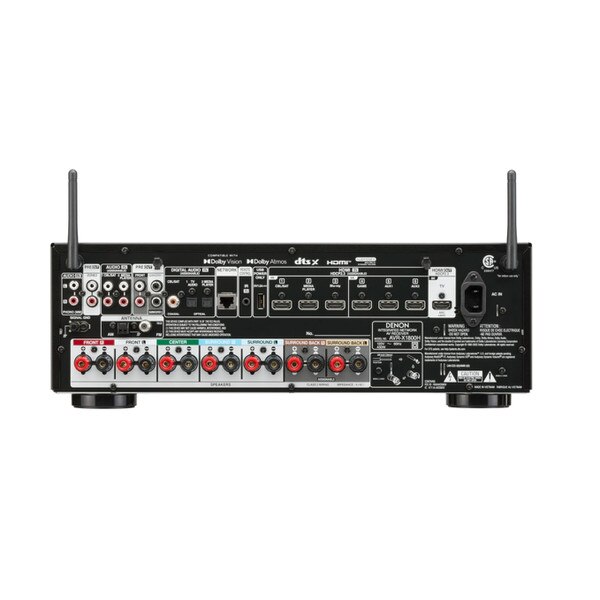

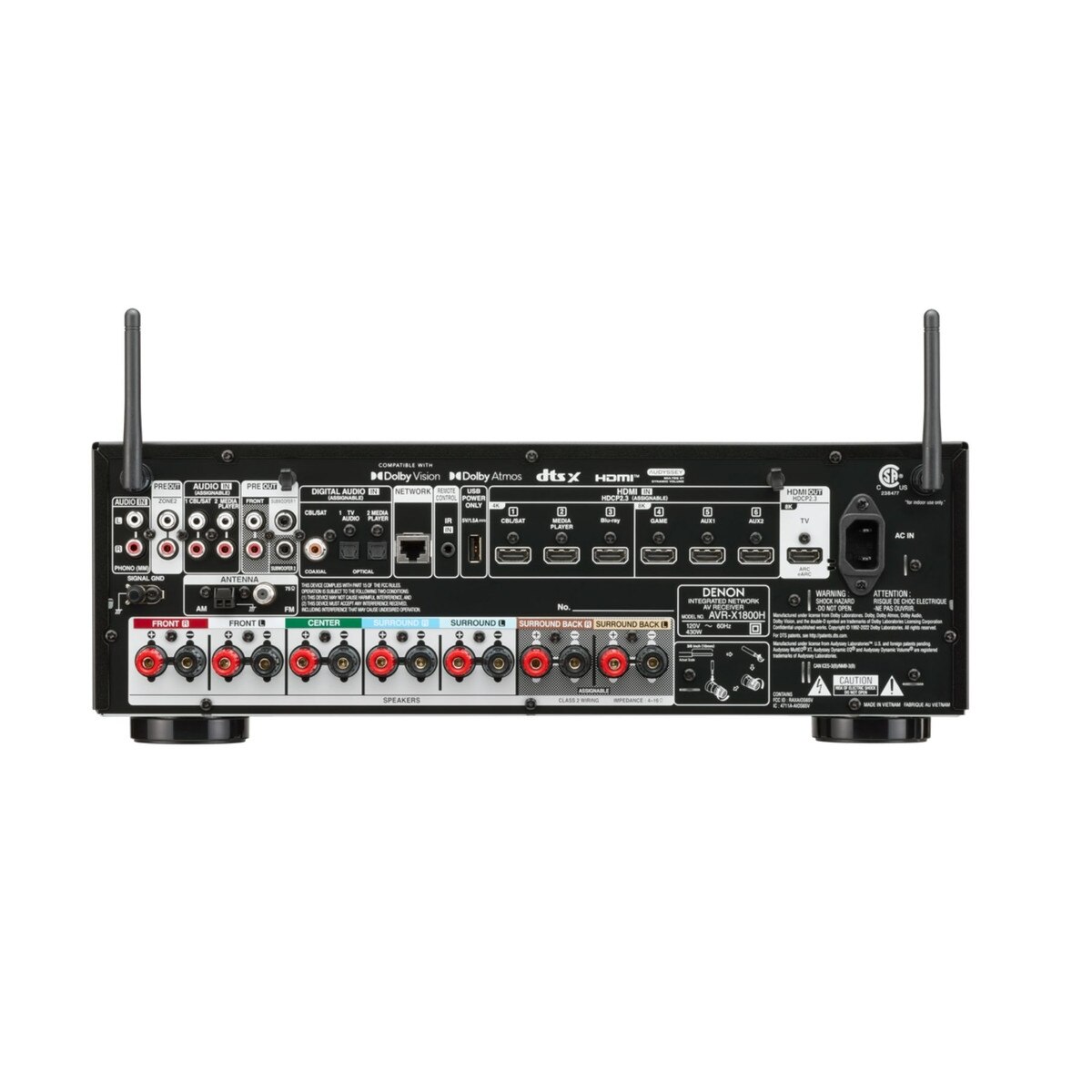

Inputs/Outputs
HDMI In/Out 6 / 1
Analog In/Out 2 / No
Phono (MM) In Yes
Digital in: Optical/Coaxial 2 / No
Multi-Room Out: Analog/Digital 1 / No
Subwoofer Out 2
Speaker Terminal: Gold-Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 7
Multi-Room Speaker Terminal assignable
USB Audio Input Front Yes
USB Power 5V/1.5A Rear Yes
FM Tuner with RDS Yes
