Recessed Door Contact

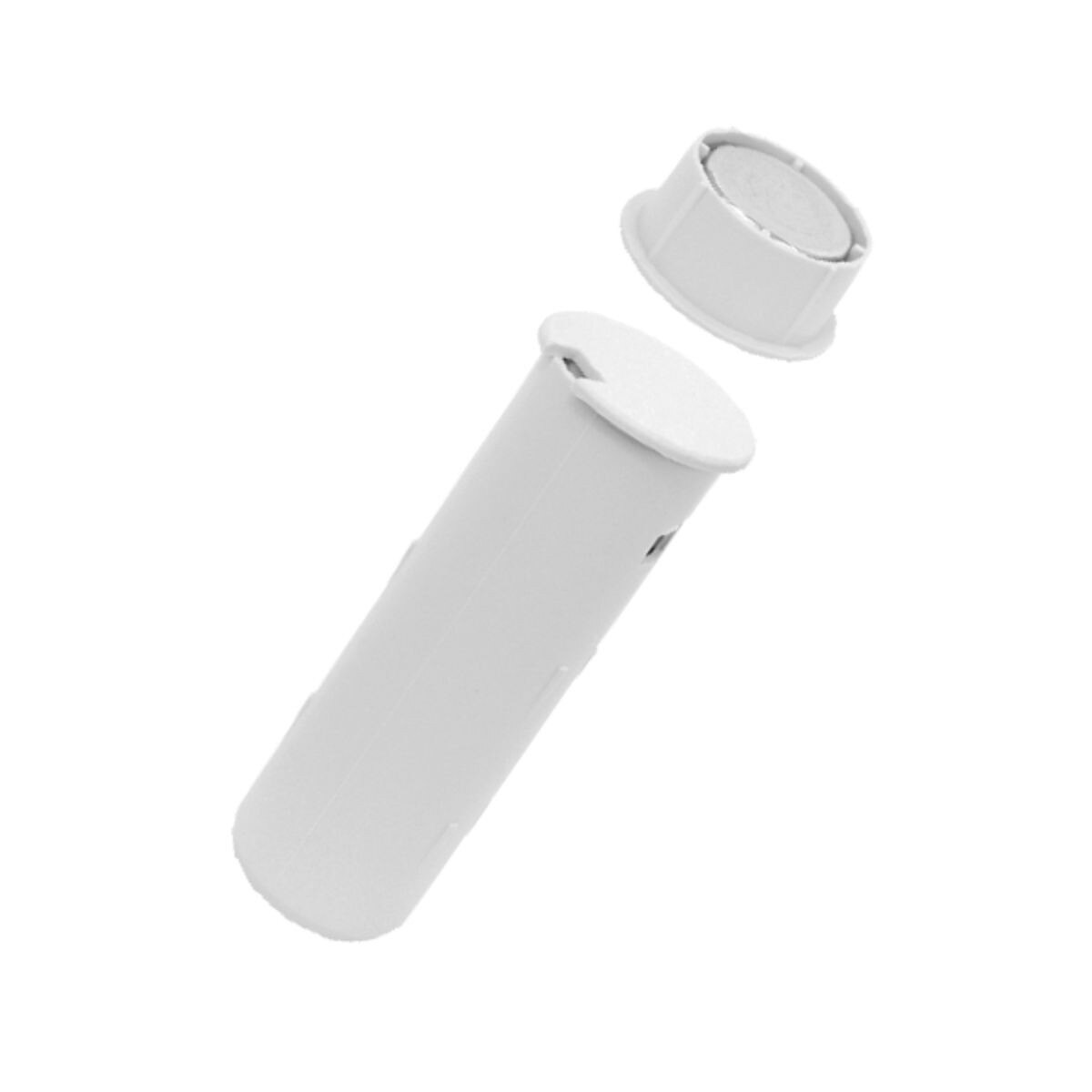

2GIG Recessed Door Contact
The 2GIG Recessed Door Contact is the industry’s most flexible supervised door contact. It communicates with the 2GIG Control Panel using the 345 MHz wireless frequency. It also allows a multitude of applications while hiding the wireless transmitter within a door or window frame.
Features
- Monitors open/close status of a door
- Hidden from view upon installation
- Easy to install with included screws
- Works with 2GIG wireless systems (345 MHz)
Contents
- Door Contact
- Magnet
- (2) Screws
- (2) Magnet Caps
- Instruction Manual
Specifications
- Manufacturer Part #: 2GIG-DW20R-345
- Wireless Signal Range: 450 feet (open air) with 2GIG Wireless Control Panel
- Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery
- Transmitter Frequency: 345.000 MHz (crystal controlled)
- Transmitter Frequency Tolerance: ±15kHz
- Transmitter Bandwidth: 24kHz
- Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
- Unique ID Codes: Over one million different code combinations
- Supervisory Interval: 70 minutes
- Peak Field Strength: Typical 50,000 uV/m at 3m
- External Input Sampling Current: 20 uA
- External Input: Accepts N/C dry contact devices
- Reed Switch Magnetic Sensitivity: 10 to 20 amp turns
- Reed Sensitivity: 0.625 in. (1.59 cm) minimum gap, 0.85 in. (2.16 cm) typical
- Magnet Dimensions: 0.5(H) x 0.75(D) inches (1.27 x 1.9 cm)
- Magnet Type: Rare earth
- Sensor Dimensions: 2.57 x 0.75 inches (6.53 x 1.9 cm)
- Weight: 1.25 ounces (35.4 g), including battery and magnet
- Housing Material: ABS plastic
- Color: White
- Operating Temperature: 32° to 104° F (0° to 40° C)
- Relative Humidity: 5 to 95% Non-Condensing
- Battery: One Panasonic CR2032 or equivalent Lithium battery (installed)
- Included Accessories: Two magnet cap styles (Normal and Screw type); Two Phillip’s flat-head screws
- Warranty: 2-Year Limited
Innovations Drives 2GIG Technology
Now a member of NICE's family brands, 2GIG offers intuitive and creative home automation and smart security technologies. Their premium security and home automation security panels, thermostats, and security sensors provide reliable and easy to use solutions to improve your home living or routine business days. 2GIG's has become a leading name in Z-Wave wireless systems, and has won numerous industry awards since 2011. With 2GIG in control, users experience cutting edge technology to make their homes smarter, safer, and more efficient.res Recessed Door Contact Compact size, only 2-1/2″ long Fully supervised Rare earth magnet Lithium battery ETL listed
