Verizon System Enhancement Module

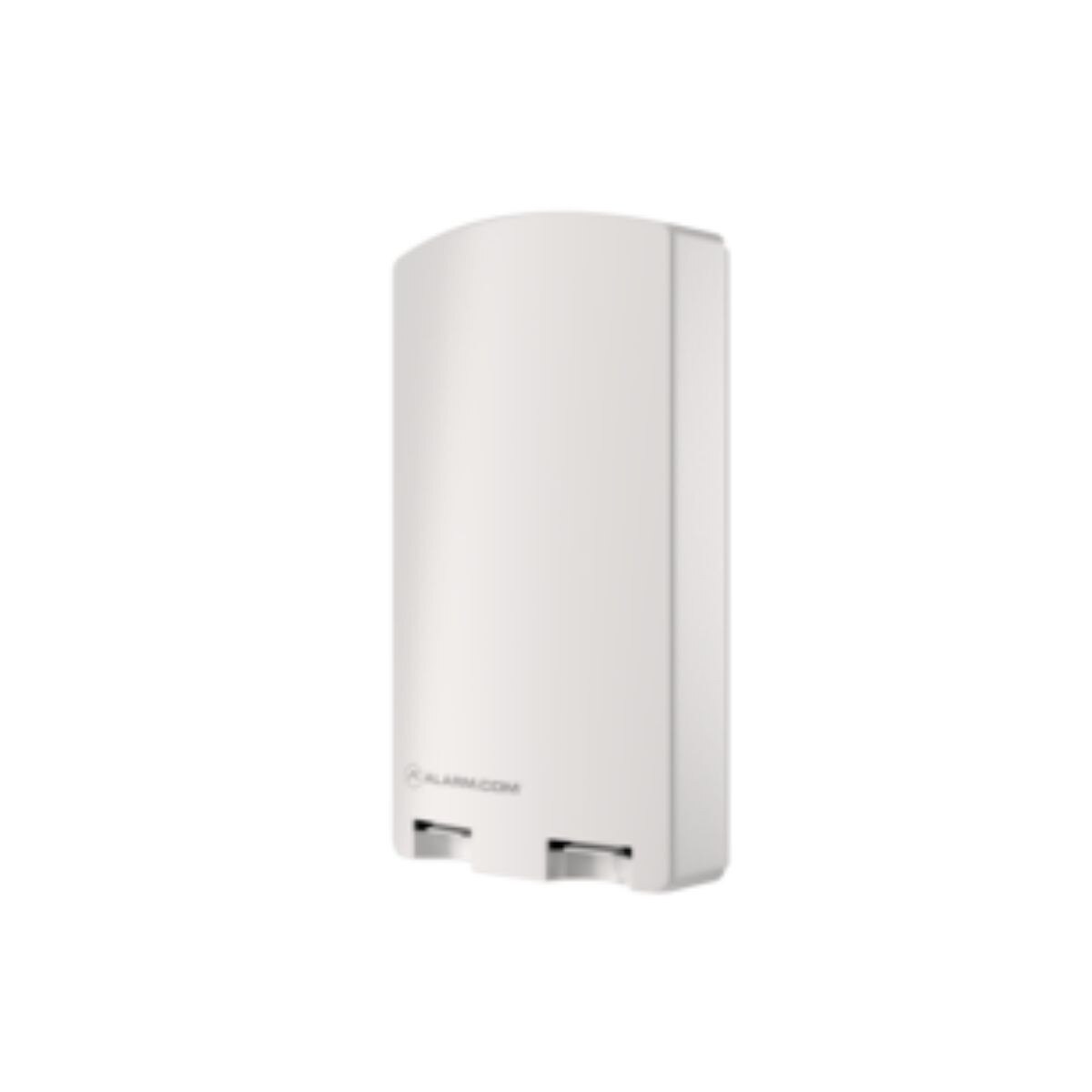

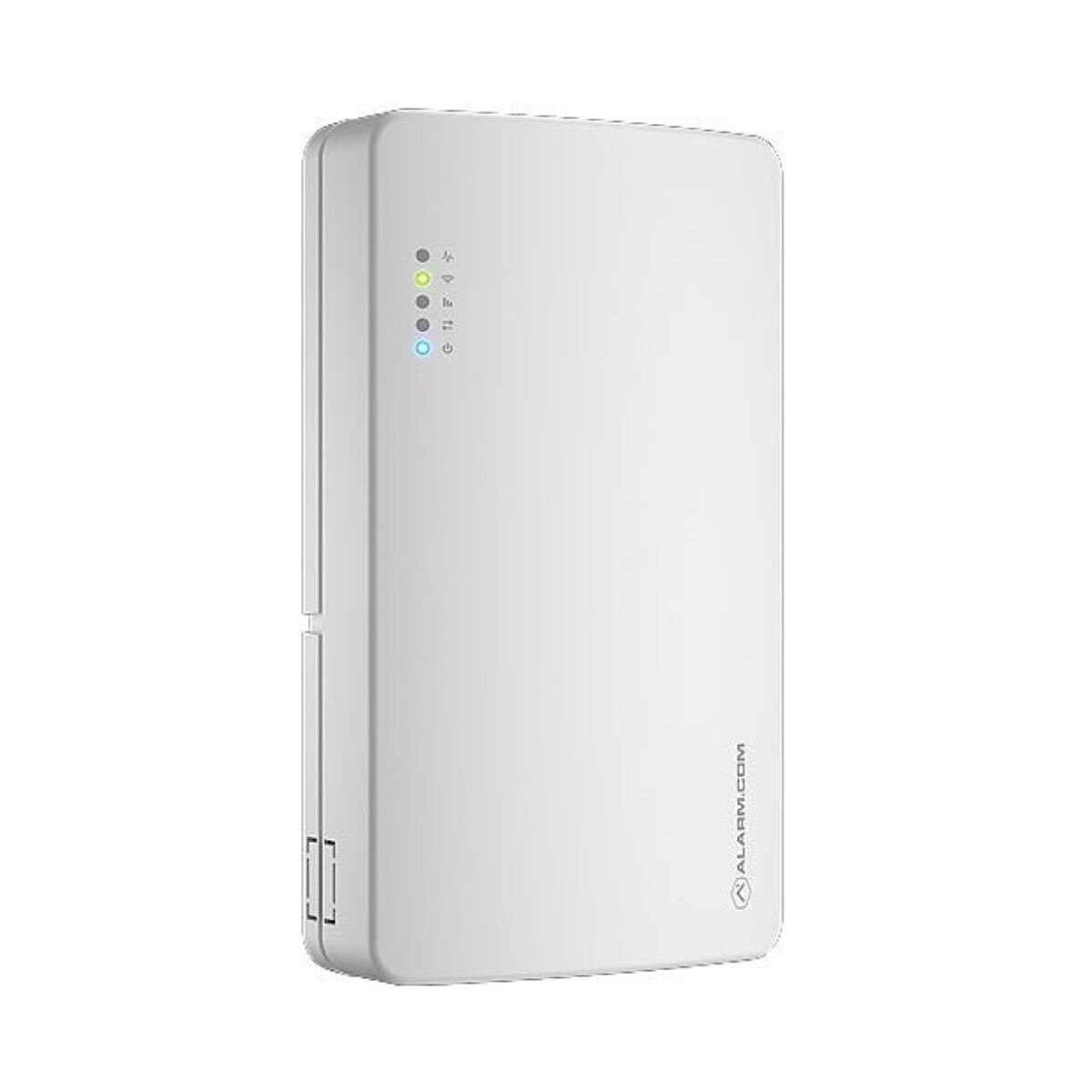

The ADC-SEM300-VT-VZ-M is a dual-path System Enhancement Module (SEM) designed for legacy Honeywell / ADEMCO VISTA-series alarm panels. It offers both LTE cellular (Verizon LTE Cat-M1) and optional wired Ethernet connectivity, enabling modern communication for older wired alarm systems. The module draws its 12 V DC power directly from the existing alarm panel, connecting via the keypad-bus interface, thereby eliminating the need for an external power supply. It is compatible with VISTA-10P, 15P, 20P, and 21iP panels (provided they meet the required firmware or jumper settings) and is housed in a fire-retardant enclosure built for secure installation.
- Converts a traditional wired alarm panel into a smart, remotely manageable system
- Supports remote monitoring, alerts, and cloud-based control
- Allows users to arm and disarm the system remotely
- Provides real-time status updates and notifications
- Operates as a Z-Wave Plus controller
- Integrates with smart-home devices (lights, locks, sensors, thermostats)
- Enables unified automation and monitoring
- Offers a cost-effective upgrade path
- Retains legacy reliability with modern smart capabilities
Beyond just communication upgrade, the ADC-SEM300-VT-VZ-M offers long-term flexibility and smart-home integration for older systems. It supports over-the-air updates and remote configuration via the cloud, simplifying maintenance and future changes. By acting as a Z-Wave controller, it lets users build a comprehensive automation ecosystem — integrating lighting, locks, sensors, thermostats — without overhauling the existing security infrastructure. However, some legacy features may become incompatible: for example, older telephone-line modules, certain audio-verification systems, or internal communicators on panels like VISTA-21iP must be disabled before installation. Users should ensure that their panel’s firmware and configuration meet the SEM’s requirements. For many, this module offers an ideal balance — preserving existing hardware while gaining modern connectivity, automation, and remote access.
Below are the real, direct download links to the official documents for the ADC-SEM300-VT-VZ-M:
Official Datasheet (PDF):
https://www.alarmax.com/customer/docs/skudocs/adc-sem300-vt-vz-alarm-dot-com-sem-honeywell-vista-dual-path-verizon-communicator-data-sheet.pdfOfficial Installation Guide (PDF):
https://www.alarmgrid.com/documents/alarm-com-adc-sem300-install-guide-dated-05-2021-rev-a.pdf
