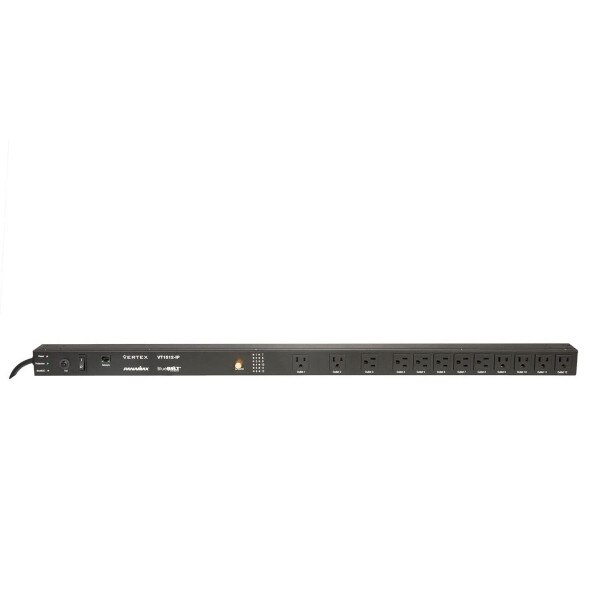

Panamax Vertical PDU

(0)No Reviews yet
MSRP: $773.54
SKU: VT1512-IP
Brand: Panamax
Back
Back

General

  • Line Voltage120 (Volts)

  • Outlet Descriptions

AC Protection

  • Maximum Current Rating15 (Amps)

Shipping Info

  • Length40 (Inches)

  • Width5.38 (Inches)

  • Height5 (Inches)

  • Weight9.25 (Lbs)

  • Unit of MeasureEach

  • UPC50616010344

  • Master Pack Qty2

Other Specifications

  • AC Power120Vac, 50/60Hz

  • Total Outlets12

  • Total Current Capacity15A (1800W)

  • Voltage Protection Rating (UL 1449 4th Edition, 3,000A)L-N 500V, L-G 500V, N-G 500V

  • Protection ModesL-N, L-G, N-G

  • Initial Clamping Level200 V Peak, 141 RMS

  • Energy Dissipation668 Joules

  • Peak Impulse Current12,000

  • Protect-or-DisconnectYes

  • Thermal FusingYes

  • Cord LengthCaptive 10ft. cord with removable NEMA 5-15P for length customization

  • Dimensions37” L x 1.75” W x 1.75” H

Back

  • Protect-or-Disconnect surge protection

  • Standard EMI/RFI Filtration

  • Over/Under voltage load disconnect

  • Power Sequencing

  • IP Monitor & Control - BlueBOLT™ enabled for IP control and monitoring

  • 12 individually controlled outlets, 3 spaced for wall-warts & 6 turned 90°

  • Ground lug to attach Panamax signal-line protection modules

  • Sleek design ideal for vertical mounting to an equipment rack with included brackets

  • 10 foot power cord with removable plug to customize length

  • 15A Capacity with circuit breaker

  • 3 year limited product warranty

  • $5,000,000 Connected Equipment Protection Policy when used with Panamax signal-line protection modules.
