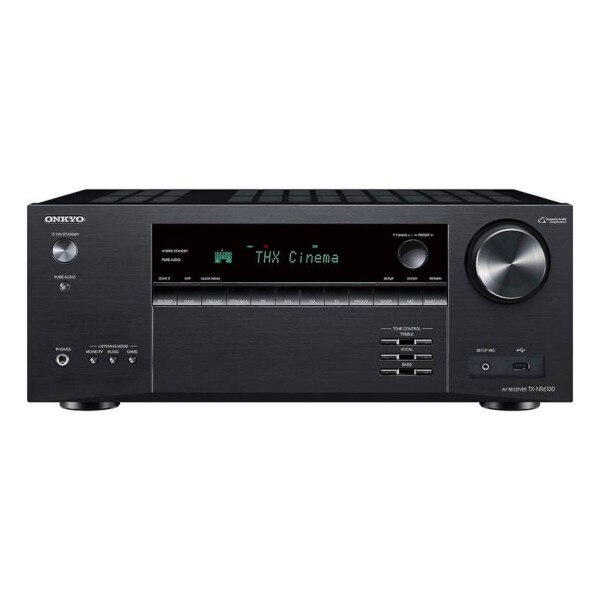

Onkyo TX-NR6100
The Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images with an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience. Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI 2.1, you can enjoy Dolby Atmos and DTS: X soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS and Dolby to create a 3D sound-field from any layout. Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 gbps, increasing the bandwidth over its predecessors.
Power supply AC 120 V~, 60 Hz
Power consumption (operating) 635 W
Power consumption (idle) 65 W
Power consumption (standby) 0.1 W
Dimensions (W x H x D) 17 1/8? x 6 13/16? x 14 15/16? (435 x 173.5 x 379.5 mm)
Weight 21.7 lb (9.8 kg)
5.2.2-channel Dolby Atmos® and DTS:X playback
AccuReflex phase-matching solution for Atmos-enabled speakers
SMART AV Receiver™
Works with Hey Google or Alexa Sold separately
Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard
HDMI® inputs
HDMI 2.1
HDMI Sub/Zone 2 Out for media transmission to a second display
Send or receive audio via Bluetooth® wireless technology
Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
5.2-ch Main + Powered Zone 2 speakers support synced/independent D/A audio playback
Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks
Amplifier
Power output (All channels) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
Frequency response 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
Tone control ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker impedance 4–16 ohms
Tuner
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM preset memory 40 stations
Accessories
Power cord
Indoor FM antenna
AM loop antenna
Speaker setup microphone
Quick Start Guide
Remote control
Two AAA (R03) batteries
