Encrypted 4-Button Keyfob

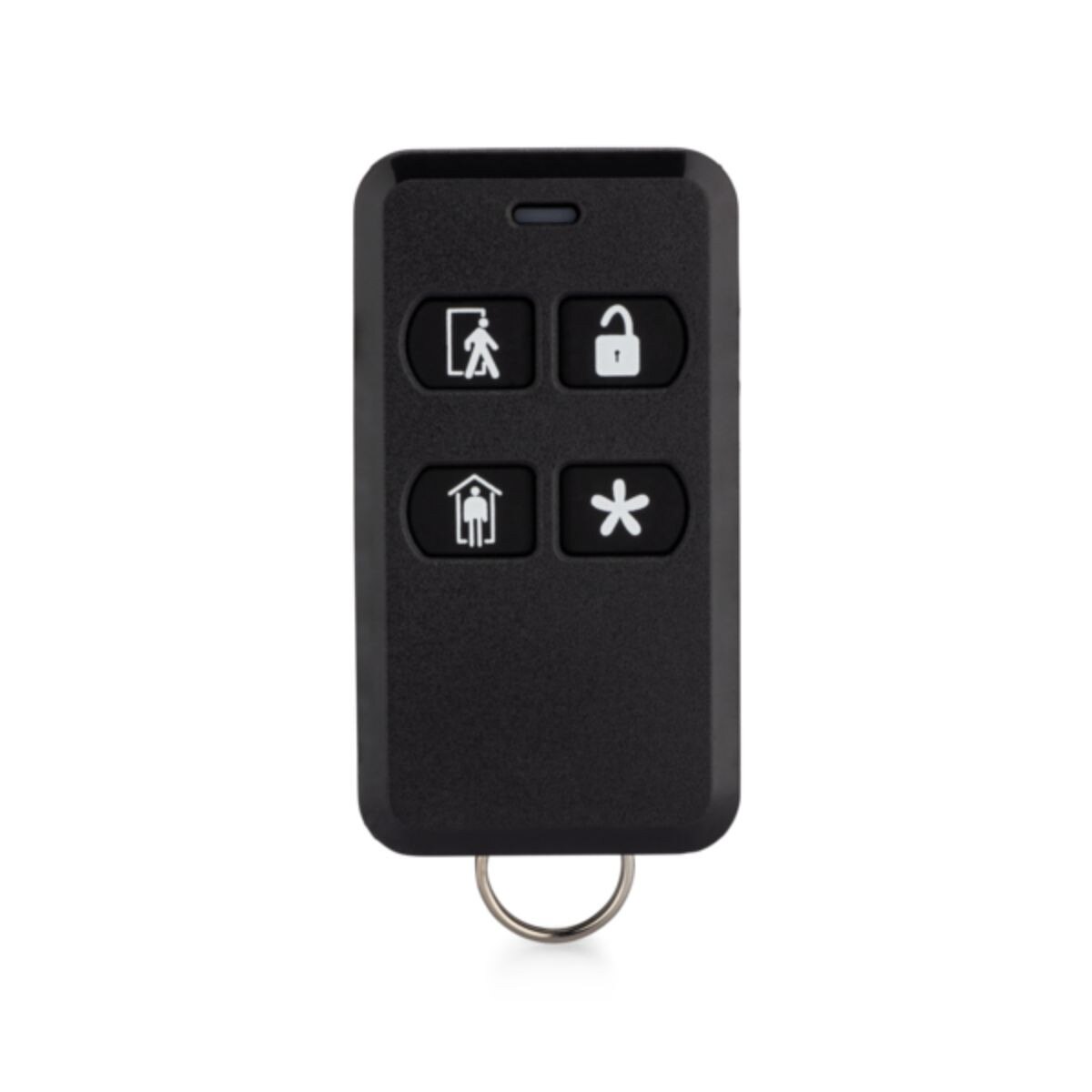

The 2GIG Encrypted 4‐Button Keyfob Remote communicates with the 2GIG Control Panel on the 345 MHz frequency. It gives users the ability to turn the security system ON and OFF before entering the home or after exiting. If there is an emergency, you can turn on the siren and automatically call the central monitoring station. Keyfobs can be programmed to operate the programmable output in the Control Panel. The keyfob is a lithium coin battery‐powered, wireless keyfob designed to fit on a key chain, in a pocket, or in a purse.
Specifications & Technology
| Feature | Details |
|---|---|
| Wireless Signal Range | 350 ft (106.7 m), open air, with Wireless Control Panel |
| Code Outputs | Arm; Disarm; Panic; Relay Control |
| Transmitter Frequency | 345.00 MHz (crystal controlled) |
| Unique ID Codes | Over one (1) million different code combinations |
| Dimensions (L x W x H) | 1.23 x 2.26 x 0.45 in (3.12 x 5.74 x 1.14 cm) typical |
| Weight (including battery) | 0.65 oz (18.4 g) |
| Housing Material | ABS Plastic |
| Color | Black |
| Operating Temperature | 32°-120° F (0°-49° C) |
| Relative Humidity | 5-90% Non-condensing |
| Battery (installed) | One (1) CR 2025 3V or equivalent Lithium coin batteries |
| Certification | ETL, FCC, and IC |
Features
Encrypted Protocol for Enhanced Security
Arms system in STAY or AWAY mode
Disarms system
Auxiliary output and emergency functions Lithium coin battery with 5 years life
