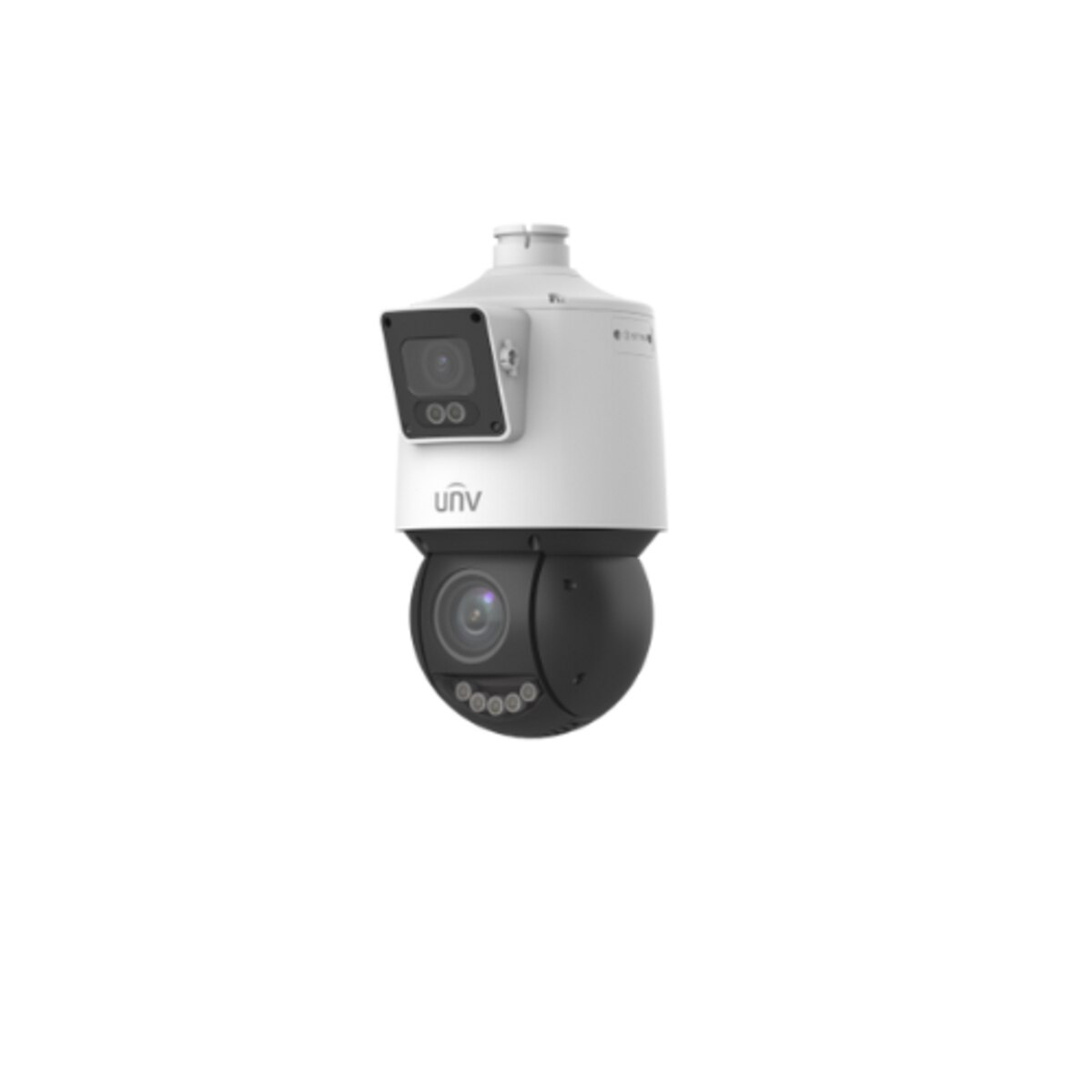

Dual 4MP 25X Zoom PTZ ColorHunter
IPC94144SFW-X25-F40C
4MP+4MP 25X ColorHunter MultiView Dual-light Network PTZ Camera
• Fixed camera and PTZ camera integration, dual-channel with one IP, provides overall view and detailed view at the same time
• Ultra 265, H.265, H.264, MJPEG
• 25X optical zoom of PTZ channel allows for closer viewing of subjects
• Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
• automatic selection of best snapshots, supports face detection masked area
• People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
• PTZ channel can be linked to fixed channel's smart intrusion prevention to track the objects triggering the rule
• Supports sound and light warning, makes warning and alarming more noticeable
• LightHunter technology ensures ultra-high image quality in low illumination environment
• IR and warm light illumination to deal with different scenes and achieve full-color illumination
• DC 12 V, PoE+ (IEEE 802.3at) power supply
• Alarm I/O: 2/1, audio I/O: 1/1
| IPC94144SFW-X25-F40C | |
| Channel | Channel 1 (Panorama) |
| Camera | |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.0, AGC ON), 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| Lens | |
| Focal Length | 4.0 mm |
| Optical Zoom | N/A |
| Iris | F1.0 |
| Field of View (H) | 94.9° |
| Field of View (V) | 51.5° |
| Field of View (D) | 112.3° |
| DORI | |
| DORI Distance (Detect) | 90.0 m (295.3 ft.) |
| DORI Distance (Observe) | 36.0 m (118.1 ft.) |
| DORI Distance (Recognize) | 18.0 m (59.1 ft.) |
| DORI Distance (Identify) | 9.0 m (29.5 ft.) |
| Illuminator | |
| Illumination Distance (Warm Light) | 30 m (98.4 ft.) |
| Illumination Distance (IR) | N/A |
| Wavelength | N/A |
| Supplemental Light | Warm light |
| Light On/Off Control | Auto/Manual |
| PTZ | |
| Pan Range | N/A |
| Pan Speed | N/A |
| Tilt Speed | N/A |
| Tilt Range | 18°±5° |
| Number of Presets (IPC) | N/A |
| Number of Presets | N/A |
| Preset Patrol | N/A |
| Route Patrol | N/A |
| Recorded Patrol | N/A |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | N/A |
| Home Position | N/A |
| Video | |
| Frame Rate | Main Stream: 4 MP (2688 × 1520), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps |
| Privacy Mask | Up to 4 areas |
| Frame Rate-Main Stream | 4 MP (2688 × 1520)@25 fps (Default) 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; |
| Frame Rate-Sub Stream | 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288) , max. 30 fps; CIF (352 × 288) , max. 30 fps |
| Frame Rate Recommendation | 2688 × 1520@30 fps + 720P@30 fps + D1@16 fps 2688 × 1520@30 fps + 720P@25 fps + D1@30 fps 2688 × 1520@25 fps + 720P@25 fps + D1@25 fps 2560 × 1440@30 fps + 720P@30 fps + D1@30 fps 2560 × 1440@30 fps + 720P@25 fps + D1@30 fps 2560 × 1440@25 fps + 720P@25 fps + D1@25 fps 1080P@30 fps + 720P@30 fps + D1@30 fps 1080P@25 fps + 720P@25 fps + D1@25 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Image | |
| Defog | Digital defog |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Heatwave Reduction | Support |
| Intelligent | |
| People Counting | Support people flow counting and crowd density monitoring |
| Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target |
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Exception Detection | Object Left Behind, Object removed, Scene change |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| UMD (Ultra Motion Detection) | Support |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1: 2014+A11: 2017) UL (UL 62368-1, 2nd Ed , Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) |
| Protection | IP66 (IEC 60529 : 1989+AMD1: 1999+AMD2: 2013) |
| General | |
| Power | DC 12 V (±25%), PoE+ (IEEE 802.3at) |
| Power Consumption | Max. 24 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 304 mm × 195 mm × 163 mm (12.0" × 7.7" × 6.4" ) (L × W × H) |
| Weight | 2.27 kg (5.00 lb.) |
| Working Environment | -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
