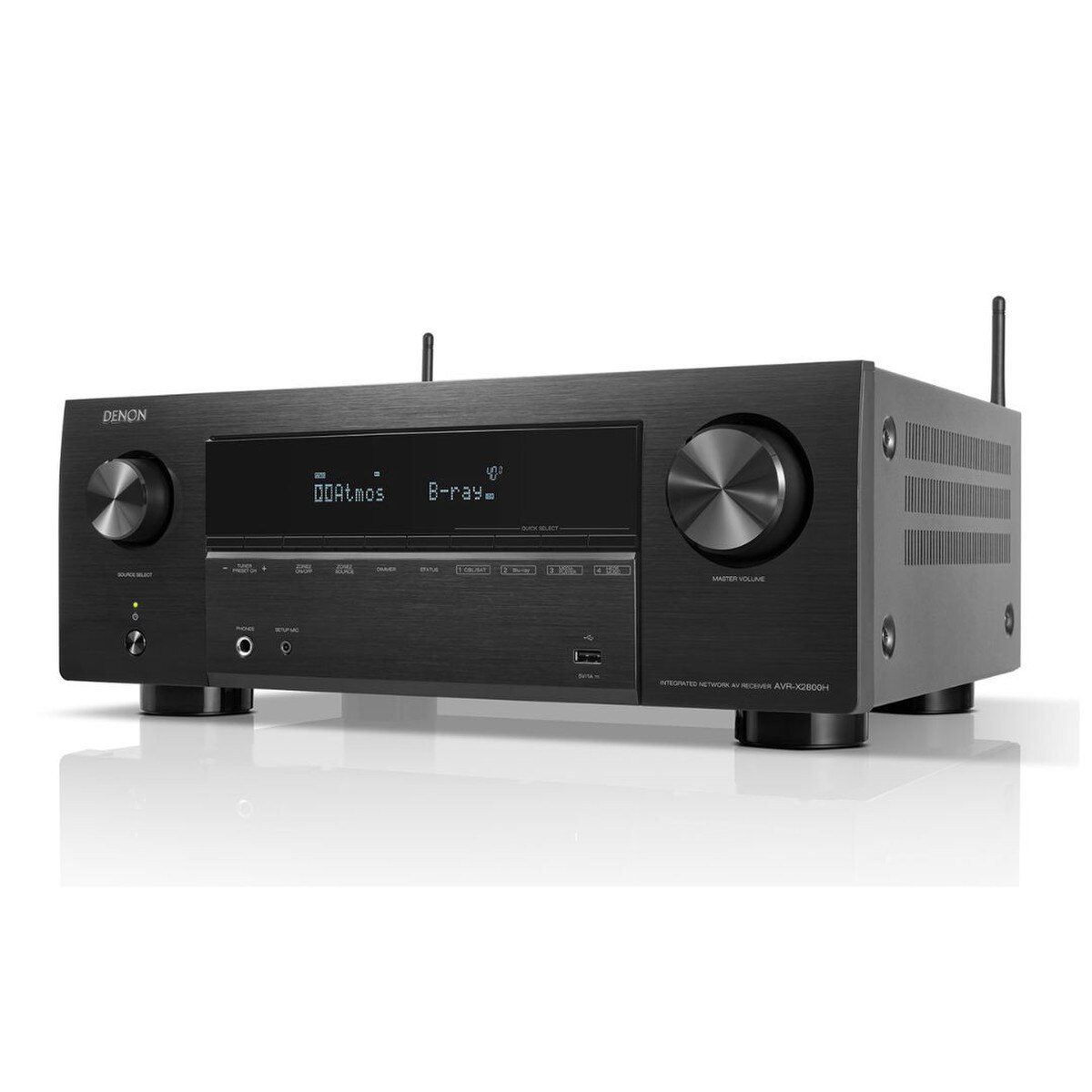

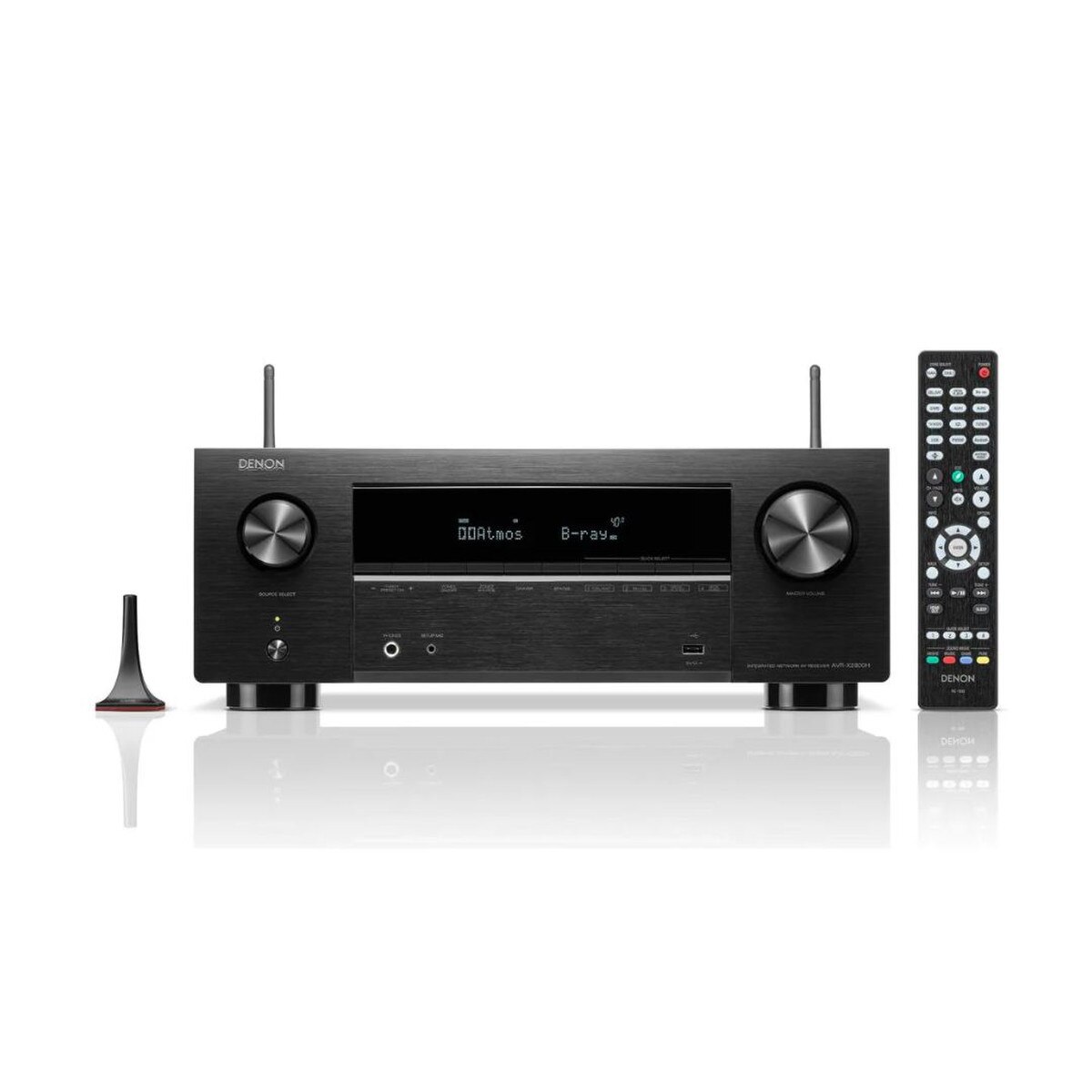

AVR-X2800H
The Denon AVR-X2800H is a 7.2 channel 8K AV receiver (95W X 7) supports the latest 3D audio formats like Dolby Surround and DTS Neural:X upmixer which ensures 3D realism for legacy content. Create a 7.2 or 5.2.2 channel speaker setup with Dolby Atmos and DTS: X for room-filling audio. The receiver features the latest in HDMI specifications such as eARC support, HDR10+, HLG, HDR, Dolby Vision, and Dynamic HDR support, as well as 8K/60Hz pass-through and upscaling for exceptional video quality. Also supports VRR, ALLM, QFT, and more for smooth, lag-free gaming. Enjoy 8K upscaling of 4K content on (3) HDMI inputs and (2) HDMI outputs. Stream popular music services like Pandora, Spotify, TIDAL, and more wirelessly with HEOS Built-in, Wi-Fi, Airplay2, or Bluetooth, transforming the unit into a bluetooth stereo receiver without extra adapters. Get seamless voice control with Alexa, Siri, and all major home automation systems. The new HD Setup Assistant provides a quick and seamless setup experience, while Audyssey Room Correction Suite room calibration walks you through setup and optimization.
Number of Power Amps 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 95W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 125W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 185W
System Remote Control RC-1253
Pre-Programmed, Learnable, LCD Display No, No, No
Power Consumption in W 500
Power Consumption No-Sound (ECO On / Off) in W 35W/75W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions 17.1 x 13.4 x 6.6
Antenna: Horizontal: (W x D x H) in Inches ( 17.1 x 13.4 x 9.3 )
Antenna: Vertical: (W x D x H) in Inches ? 17.1 x 13.0 x 6.6 ?
W/O Antenna: (W x D x H) in Inches
Weight in LBS 21.0
Weight in LBS (Packaging) 25.4
Multichannel Surround
DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, No
DTS Neo:X, DTS Neural:X No, Yes
DTS Virtual:X Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround No, Yes
Multichannel Stereo Yes
Max. Number of Processing (Pre-Amp) Channels 7.1
Sound Enhancements
Discrete Power Amplifier Yes
Pure Direct Yes
Audyssey MultEQ XT
Audyssey Dynamic EQ, Dynamic VolumeYes, Yes
Compressed Audio Restorer Yes
Network
Media Server Yes
Wireless Multi-Room Technology Powered by HEOS™ Yes
Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
AirPlay 2 Yes
TuneIn Yes
Spotify Connect Yes
Pandora Yes
SiriusXM Yes
Roon Tested Yes
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
HDMI Inputs: Back, Front 6, No
HDCP2.3 support Yes
HDMI Outputs: Main, Zone 2, No
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No
3D Signal Pass-through Yes
8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
Audio Return Channel (ARC), Enhanced ARC Yes, Yes
Auto LipSync Yes
Multi-room CI
Multi-Room Zones 2
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out Yes, Yes
IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
Remote In / Out Yes, Yes
HDMI Diagnostics Yes
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT
Front Display 1-Line FLD
GUI Languages 3
Setup Assistent Yes
Quick Select Plus, Quick Select Yes, No
Variable Crossover Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes
Inputs/Outputs
HDMI In, Out 6, 2
Multi-Room Video Out: Video, HDMI No, No
Analog In, Out 4, No
Phono (MM) In Yes
Digital In: Optical, Coaxial 2, 1
Multi-Room Out: Analog, Digital 1, No
Multichannel Pre-out Yes (0.2)
Subwoofer Out 2
Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
Number of Speaker Terminals 7
Speaker A / B Assignable
Bi-amp Drive Assignable
Multi-Room Speaker Terminal Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone Yes, No, No
AM/FM Tuner Yes
