64 Channel NVR (No HDD)

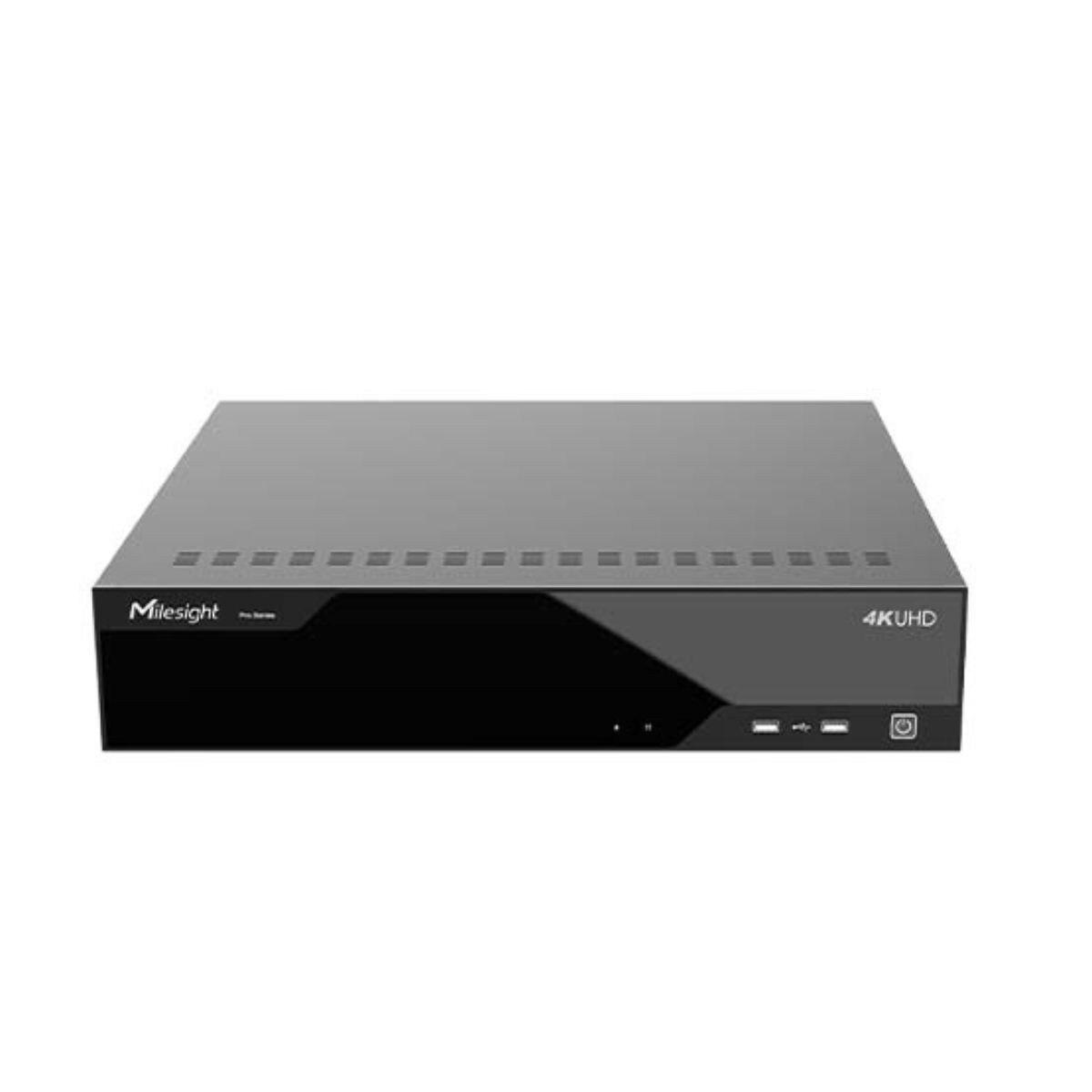

Milesight 4K H.265 Pro NVR 64 Channels 8000 Series
Milesight 4K 64 Channel Pro IP Camera Network Video Recorder, Multi-video Output, Decode up to 4-CH 4K UHD & 16-CH 1080P, ANR, RAID, N+1 Hot Spare and Versatile Interfaces
| Network Video Input | 64-CH |
| Bandwidth Requirement | 320Mbps or 200Mbps(When RAID is enabled) (Incoming), 256Mbps or 200Mbps(When RAID is enabled) (Outgoing) |
| HDMI Output | 2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P),64*(30fps @D1) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| SATA | 8*SATA HDD (3.5”) |
| eSATA | 1*eSATA |
| Capacity | Up to 10TB capacity for each HDD |
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Network Interface | 2*RJ45 10/100/1000Mbps |
| USB Interface | 1*USB 3.0; 2*USB 2.0 |
| Serial Interface | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard |
| Audio Input/Output | 1*RCA/2*RCA |
| Alarm Input | 16-CH |
| Alarm Output | 4-CH |
| Compatibility | ONVIF, API |
| Advanced Function | ANR, N+1 Hot Spare |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V~240V 50Hz~60Hz |
| Consumption | =35W(Without HDD) |
