Dynamo 10 Sub - White

(0)No Reviews yet

With premium looks and the high performance to back it up, Dynamo™ 10 is a compact, powerful and musical subwoofer ideal for any system but engineered to compliment the speed and detail of MartinLogan loudspeakers. Dynamo 10 packs an extensive feature list including a custom 10” aluminum woofer, a 1000W peak power amplifier, and a best-in-class 500MHz DSP Engine with 64-bit processing all encased in a beautifully finished 1” thick cabinet. With plenty of power and precision on tap, Dynamo 10 also features an array of connectivity options ranging from XLR to the built-in wireless option. If that weren’t enough, Dynamo 10 also features MartinLogan’s powerful and intuitive control app for convenient setup and adjustment, as well as being compatible with the award-winning Anthem Room Correction (ARC®) system.

Back

Digital Signal Processing	Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Frequency Response	23–120 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer	10” (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket
Cabinet	Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle
Amplifier	Magnitude® MT-1kW Amplifier with 1,000W peak (500W continuous)
Controls (Backplate)	Level: Interactive LED Backlit Knob Tone Sweep: Sweep Start and Pause (with status light) Power Mode: On, 12v Trigger, Auto Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Controls (via Bluetooth)	Level: -40 to 12dB (Min-Max) Low-Pass Filter (Frequency): 35–120Hz (1° Increments) Low-Pass Filter (Order): Bypass, Third, Fourth Phase: 0–180° (1° Increments) Phase (Polarity): Normal, Inverted Preset Listening Modes: Movie, Music, Night 20–30Hz Level: ±10dB Anthem Room Correction (ARC Genesis): On, Off Tone Sweep (120-20Hz): On, Off, Pause (Frequency)
Wireless Inputs	Integrated Wireless Receiver, Wireless Transmitter Included
Inputs	Line Level: Left, Right, and LFE XLR: LFE Speaker Level: Left and Right (requires banana plugs)
Power Draw	Max: 500W Standby (Wireless Disabled): 0.5W Standby (Wireless Enabled): <2W *Transmitter and Subwoofer combined
Feet	Integrated Anti-Vibration Feet (carpet spikes included)
Weight	42.8 lbs (19.4 kg)
Dimensions (H x W x D)	14-3/4" x 13-3/4" x 13-3/4" (37.3cm x 34.8cm x 34.8cm)
Finish	Gloss Black or Satin White

Back

Seamlessly Integrating High-Performance Audio with Elegant Design

Emphasizing high performance and decor-friendly aesthetics, MartinLogan subwoofers expertly blend audiophile musicality and theatricality with dynamic output and accuracy in a compact design. As with all MartinLogan subwoofers, the Dynamo Series is designed to work with any speaker system while being uniquely engineered to keep pace with the exotic thin-film technologies utilized in MartinLogan loudspeakers.

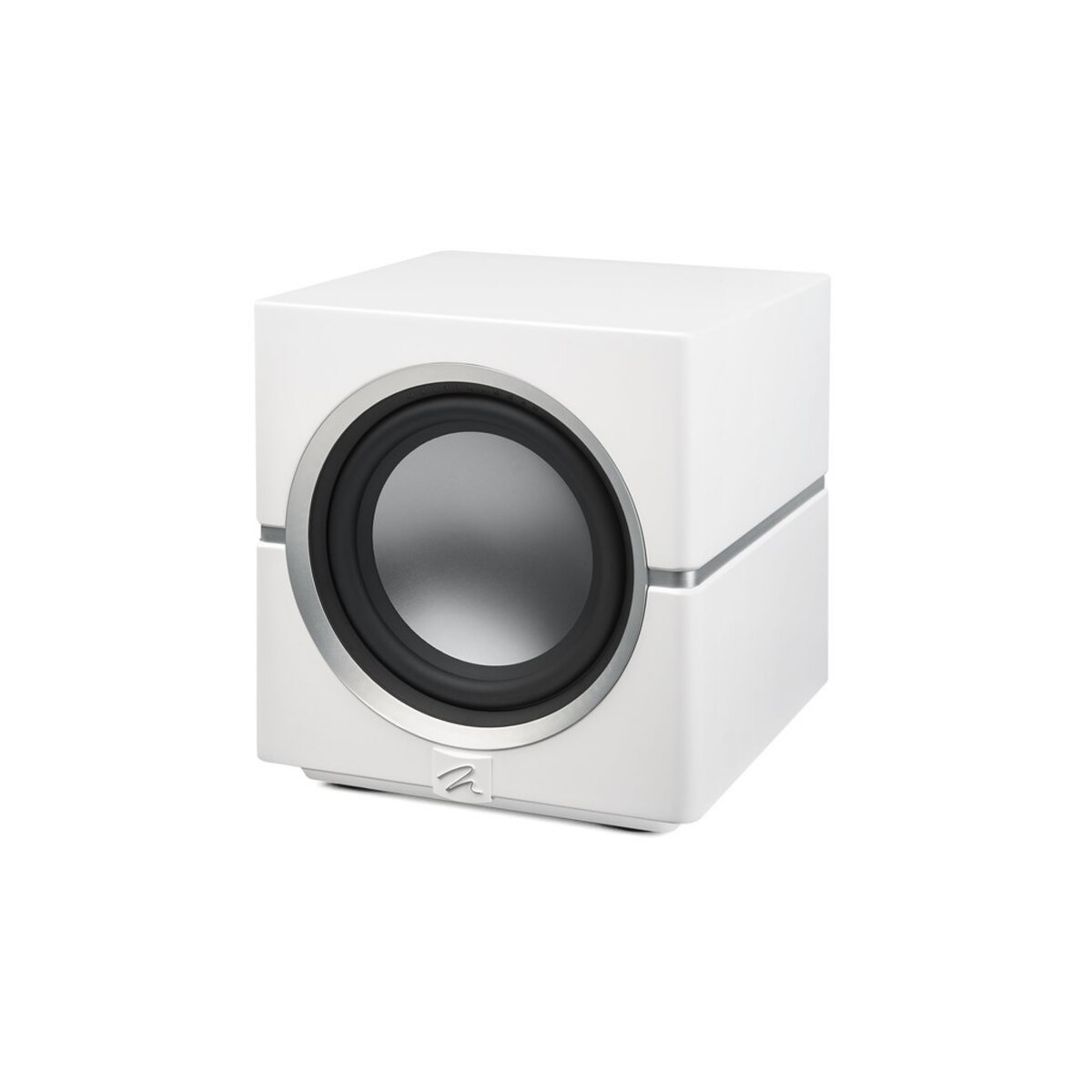

Advanced Aluminum Woofers for Powerful, Distortion-Free Bass

Dynamo 10 features a custom-designed 10” aluminum woofer tuned using state-of-the-art Klippel analysis for high output and low distortion. The light weight, high strength, and excellent heat dissipation properties of aluminum make it ideal for delivering clean, powerful bass in a compact design. Meticulously engineered for maximum precision and dynamics, Dynamo subwoofers offer versatile performance to meet your musical and powerful bass needs.

Magnitude® MT-1kW Amplifier

To feed Dynamo 10’s aluminum woofer with as much power as it can use, the advanced MT-1kW amplifier delivers up to 1000W peak (500W RMS) of clean power, ensuring remarkable impact and seamless musicality. MartinLogan’s Magnitude amplifiers are designed to deliver their power reserves with ultra-low distortion to ensure maximum fidelity along with high output capability. Guaranteeing exceptional control, the MT-1kW amplifier helps Dynamo 10 provide an immersive audio experience that enhances your favorite content at all volume levels.

Advanced Vojtko DSP Engine: Elevating Subwoofer Performance

Dynamo subwoofers utilize the cutting-edge, ultra-high-resolution Vojtko DSP engine, named after MartinLogan’s Chief Audio Technologist. Featuring a best-in-class 500MHz DSP with 64-bit processing, the Vojtko DSP engine is the maestro that commands all aspects of subwoofer performance in real-time. This level of computing power allows MartinLogan engineers to fine-tune performance for maximum output and fidelity with complete audible transparency as well as enabling advanced features like wireless app control, integrated wireless signal connection, and other advanced DSP functions. Thanks to the computational power of this sophisticated DSP engine, Dynamo subwoofers are also compatible with the award-winning Anthem Room Correction (ARC®) system.

Built-In Wireless Capability

Although correct placement plays a key role in optimizing subwoofer performance, getting a cable where you need it can be challenging. For ultimate convenience, our Dynamo subwoofers come with a built-in Wireless Receiver and Wireless Transmitter, making it easier than ever to eliminate cable clutter. With lossless transmission and low latency, even the most discerning enthusiast will be thrilled with the results.

Sound Structure

The cabinet plays a critical role in the sound quality of a speaker. Dynamo subwoofer cabinets are made of 1” thick MDF (Medium Density Fiberboard) with additional reinforcement on the woofer baffle. This solid construction provides a more stable platform for the high performance woofer to play from, resulting in cleaner, more articulate bass.

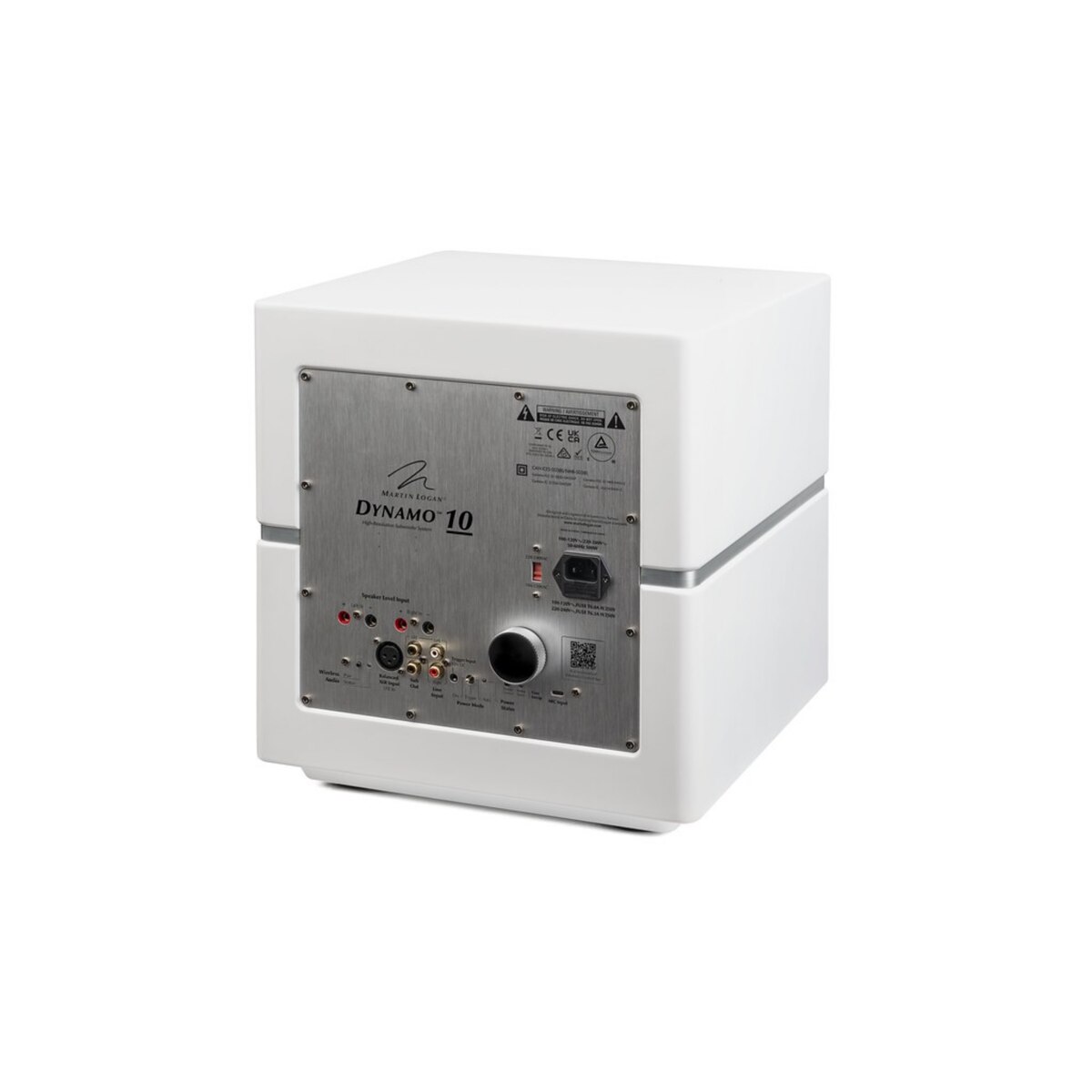

Robust Connectivity

In addition to the built-in wireless connection option, Dynamo 10 offers incredible wired installation flexibility. With both RCA and XLR LFE inputs, Stereo RCA inputs, Speaker Level inputs, and Sub Out connections, Dynamo 10 can be easily integrated i
