Aero 2 Door Access Control Kit

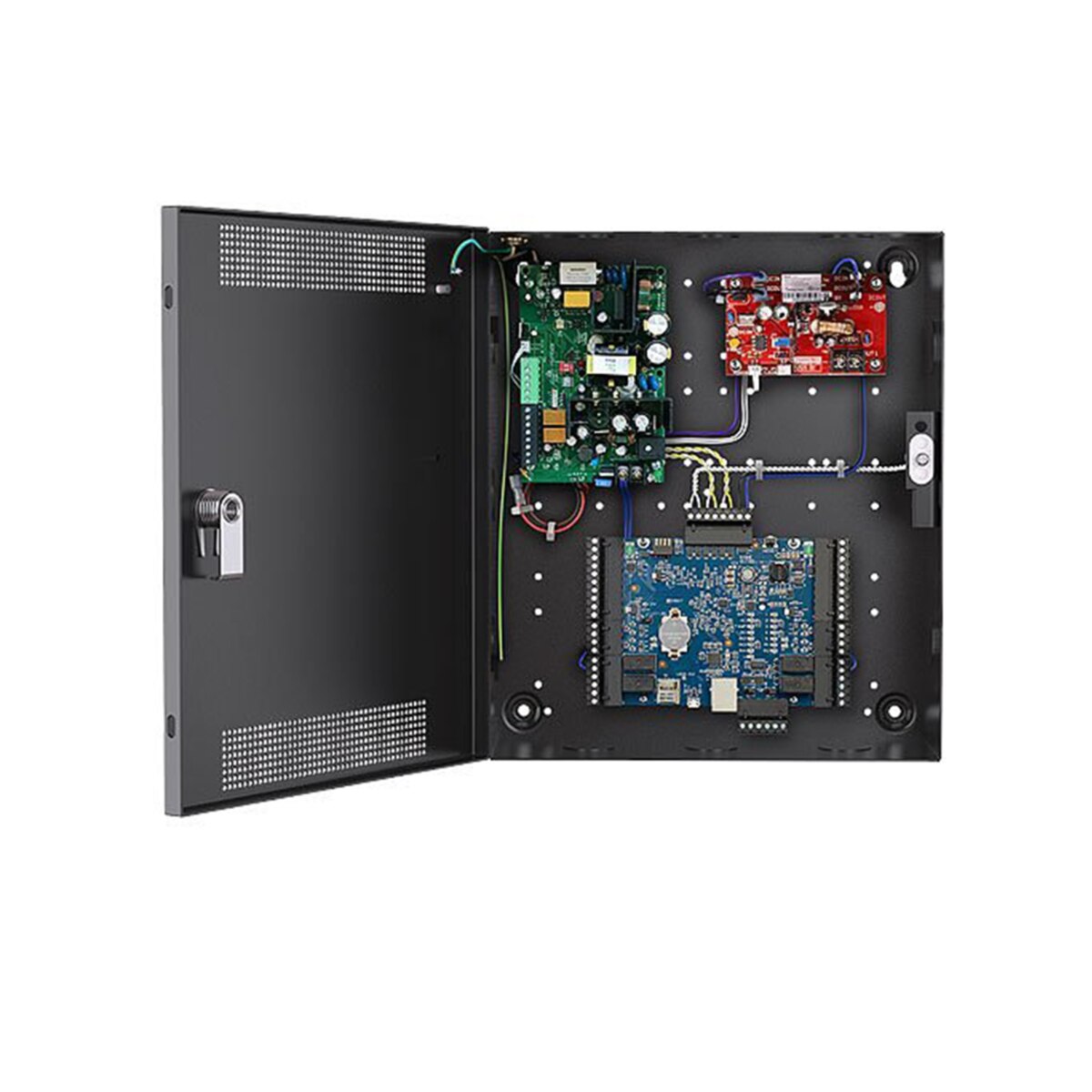

The ADC-AC-X1100-2PSE is a 2-door access-control controller and power supply enclosure kit designed for small-scale commercial or residential access control systems. It combines a main access controller board and a built-in power supply that provides both 12 VDC and 24 VDC power outputs for locks, sensors, and related access hardware. The unit supports up to 2 reader inputs (for card or keypad readers), 4 relay outputs (for electric locks/strikes or magnetic locks), and 4 programmable inputs (for door contacts, exit buttons, or sensors). The enclosure includes space for a backup battery, enabling power-fail protection and continued access-control operation during outages. As a pre-assembled, integrated solution, the X1100-2PSE simplifies installation and reduces wiring complexity for small business or multi-unit residential door access systems.
- 2-door access control panel with integrated power supply and enclosure
- Supports 2 reader inputs for card or keypad access on two entries
- Provides 4 relay outputs for locks/strikes and 4 programmable inputs for sensors
- Supplies 12 VDC and 24 VDC power to locks, sensors, and controlled devices
- Includes battery backup capability for operation during power outages
- Pre-wired and ready-to-install — simplifies wiring and speeds up deployment
- Suitable for small offices, duplexes, gated entrances, and light commercial use
The ADC-AC-X1100-2PSE is a turnkey access control solution ideal for small properties, offices, or residential buildings needing secure entry management for one or two doors. Its integrated power supply and enclosure remove the need for separate power bricks or external wiring setups. The inclusion of relay outputs and programmable inputs provides flexibility in controlling electric strikes, magnetic locks, exit buttons, sensors, alarms, or other access devices. With battery backup capability, the system can continue to function during power interruptions, improving reliability and security. This controller is a practical choice when you want a streamlined, plug-and-play access control system without the complexity and cost of enterprise-grade panels.
Product Specification / Installation Manual (PDF):
https://www.snapav.com/wcsstore/ExtendedSitesCatalogAssetStore/attachments/documents/Surveillance/ManualsAndGuides/adc-ac-x1100-2pse_20200909.pdfWiring Diagram & Technical Sheet (PDF):
https://www.alarmax.com/customer/docs/skudocs/adc-ac-x1100-2pse-data-sheet.pdf
